Model NO.
1220x2440mm, 1250x4100mm, 1250x2500mm, 625x2500mm
Formaldehyde Emission Standards
E0
Surface Finishing
Finished
Certification
ISO9001, CE, Fsc
Raw Material
All Pine,Poplar
Etra Service

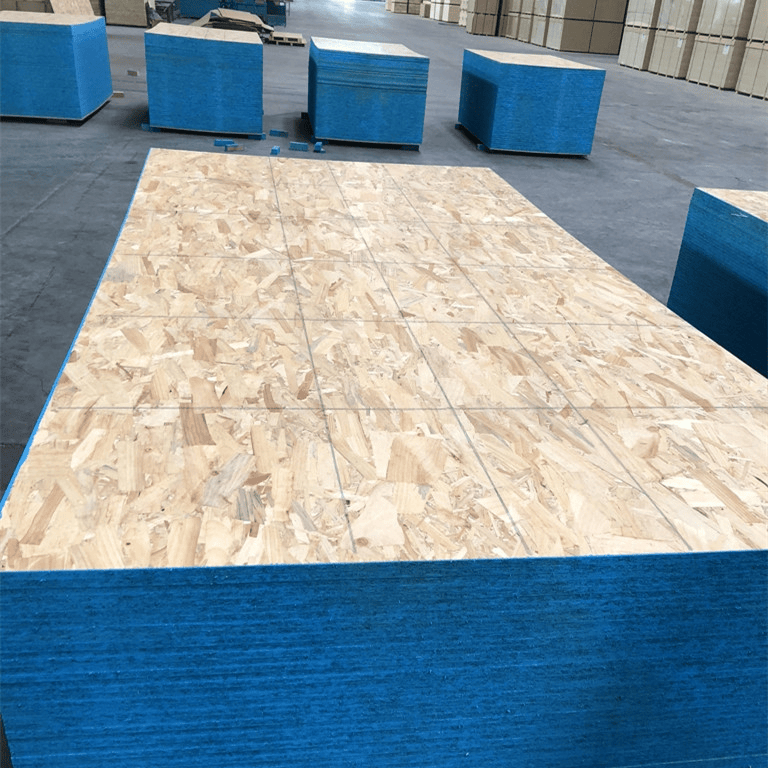

Edge Painting,Nail Line,Tongue and Groove
Market
Canada,America,Korea,Europe,Middle Eastern countries, etc.
Transport Package
Pallet Packing
Specification
9mm, 11mm, 12mm, 15mm, 18mm, 22mm, 25mm
Production Capacity
900000cbm
Product Description

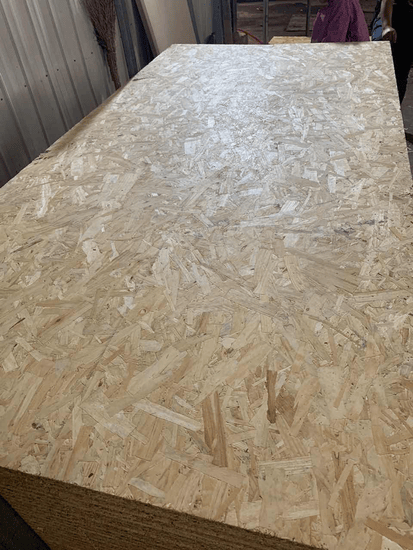

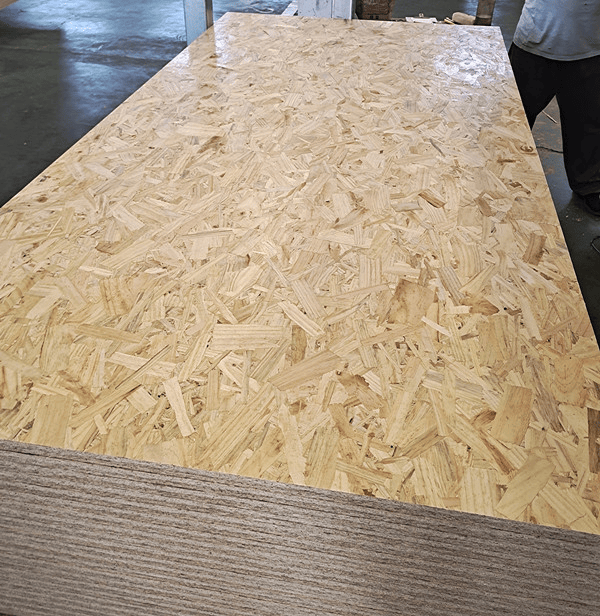

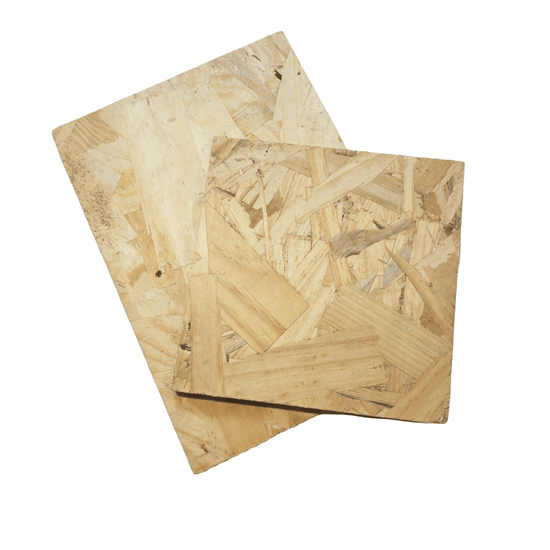

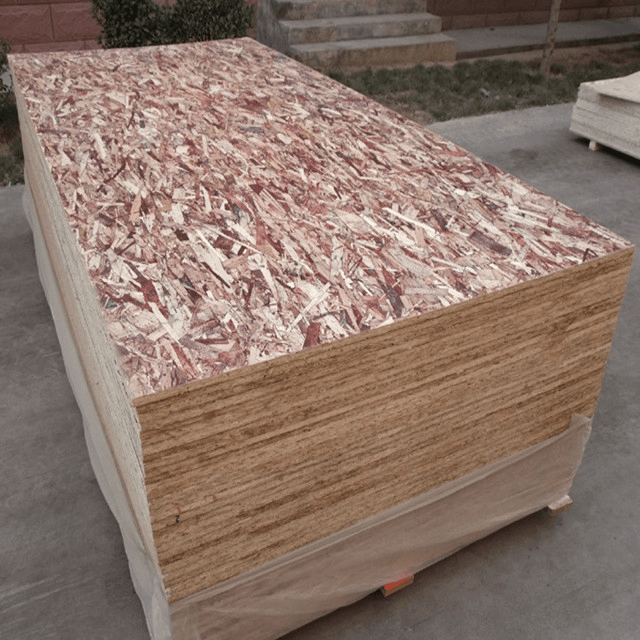

OSB (Oriented Strand Board) Panels are versatile engineered wood products created by compressing layers of oriented wood strands with a waterproof adhesive under high heat and pressure. These panels feature a consistent, homogeneous structure with strands arranged in cross-oriented layers, providing superior structural strength and dimensional stability compared to traditional plywood or particleboard. The surface is smooth and uniform, suitable for both structural applications and decorative finishes.
Manufactured from fast-growing softwood species such as pine or spruce, OSB Panels are an environmentally friendly choice, as they utilize nearly the entire log, minimizing waste. The panels are available in various thicknesses (from 3mm to 25mm), sizes (standard 4x8 feet and custom dimensions), and grades, including structural (for load-bearing walls, roofs, and floors) and non-structural (for furniture, cabinetry, and interior applications). Treated options with fire-retardant or moisture-resistant additives are also available for specialized environments.
Features
Exceptional Structural Strength: The cross-oriented strand structure distributes loads evenly, making them ideal for load-bearing applications in buildings and furniture that require high shear resistance and impact tolerance.
Dimensional Stability: Resistant to warping, swelling, and shrinking due to changes in humidity, ensuring long-term performance in both interior and exterior environments.
Cost-Effective and Sustainable: Utilizes lower-grade wood fibers, making them more affordable than plywood while offering comparable strength. They are also certified by forestry standards like FSC and PEFC, promoting responsible wood sourcing.
Easy Workability: Can be easily cut, drilled, nailed, or screwed using standard woodworking tools, allowing for efficient installation in construction and manufacturing processes.
Versatile Surface Finish: The smooth surface accepts paints, stains, and laminates well, making them suitable for both structural and decorative uses in furniture and interior design.

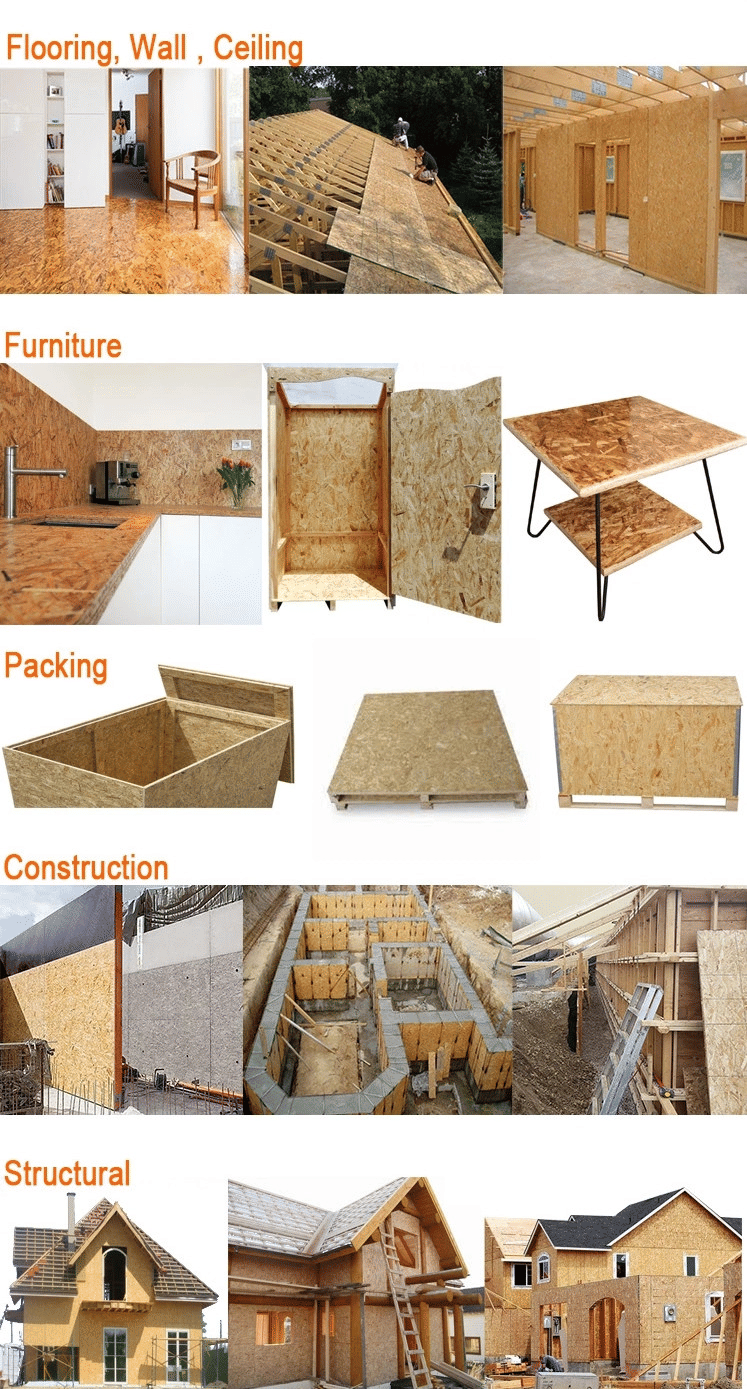

Application

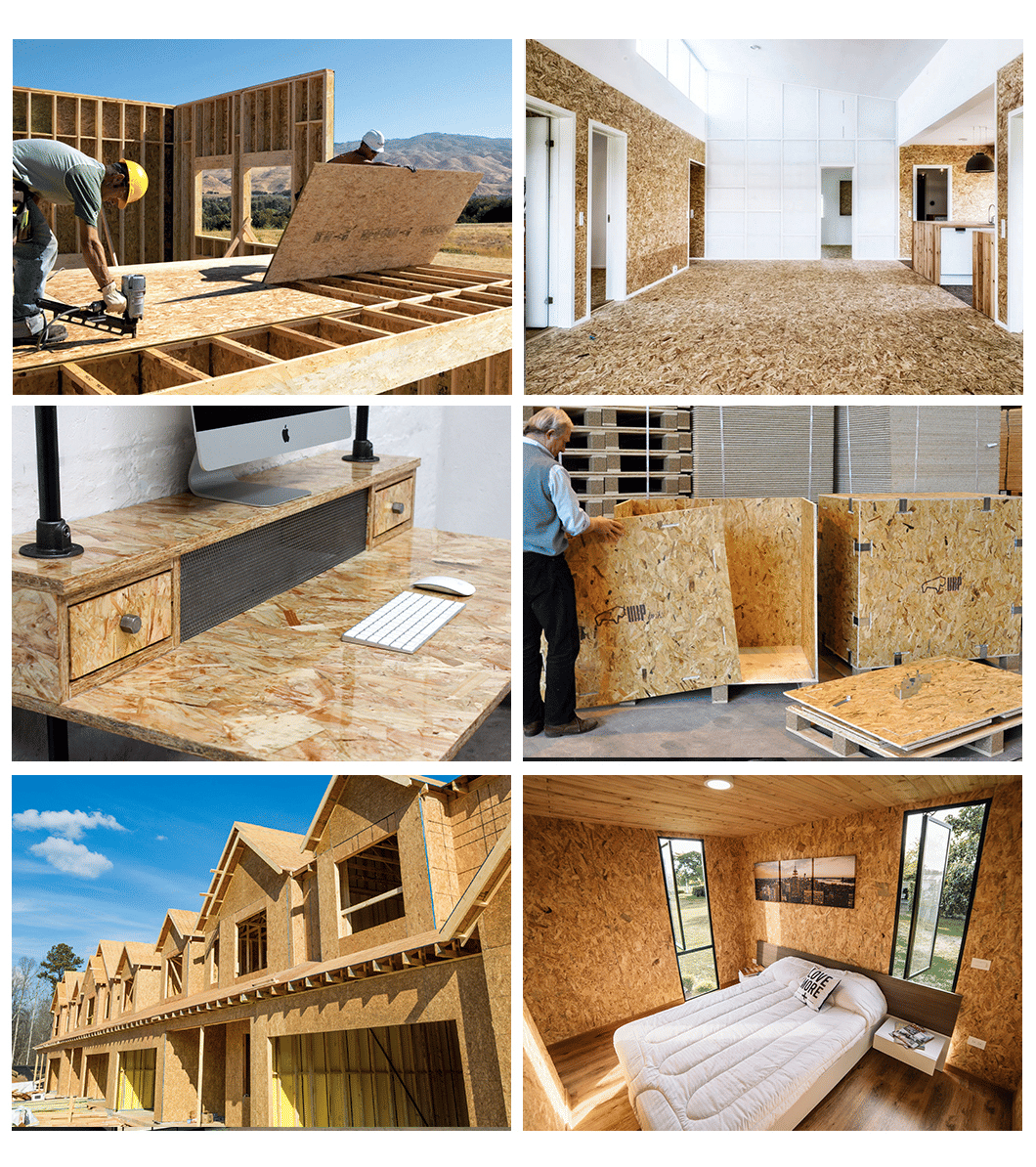

OSB Panels are widely used in construction, woodworking, and manufacturing due to their adaptability and reliability:
Residential and Commercial Construction:
Structural applications: Sheathing for walls, roofs, and floors, providing a solid base for siding, roofing materials, and flooring systems.
Subflooring: Offers a stable, load-bearing surface that can withstand heavy foot traffic and the installation of tiles, carpets, or hardwood flooring.
Furniture Manufacturing:
Used for cabinetry, shelves, and drawer boxes, where their strength and smooth surface allow for both functional and aesthetic designs.
Ideal for flat-pack furniture due to their lightweight yet durable nature, reducing shipping costs and assembly time.
Industrial and Packaging:
Crates and pallets: Strong enough to support heavy loads during transportation, with treated versions suitable for outdoor or marine use.
Machinery enclosures: Provide a protective barrier for industrial equipment, resistant to impact and moderate chemical exposure.
Interior Design and Decoration:
Wall and ceiling panels: Can be painted or stained to create rustic or modern aesthetic effects in homes, offices, and retail spaces.
DIY projects: Popular for home renovations, craft projects, and temporary structures due to their ease of use and affordability.
FAQ
Q: Are OSB panels suitable for outdoor use?
A: Yes, exterior-grade OSB panels are treated with waterproof adhesives and can be used for sheathing, roofing, and other outdoor applications when properly sealed and protected from prolonged water exposure.
Q: How do they compare to plywood in terms of moisture resistance?
A: While plywood has a slightly better resistance to water absorption, modern OSB panels with wax additives and waterproof glue offer comparable performance in wet environments, especially when used with proper vapor barriers.
Q: Can they be used for load-bearing walls in multi-story buildings?
A: Yes, structural-grade OSB panels are approved for load-bearing applications in buildings up to three stories, provided they meet local building codes and are installed correctly.
Q: Are there formaldehyde-free options?
A: Yes, we offer E0 and E1 grade OSB panels that use low-emission adhesives, compliant with indoor air quality standards for residential and commercial interiors.
Q: How should I store OSB panels before installation?
A: Store them flat in a dry, well-ventilated area, elevated off the ground to prevent moisture absorption. Avoid exposure to direct rain or prolonged humidity before installation.
OSB Specification And Details
Commodity | OSB(Oriented Strand Board) |
Size | 1220x2440/1250x2500/1250x4100/625x2500 mm or as customized |

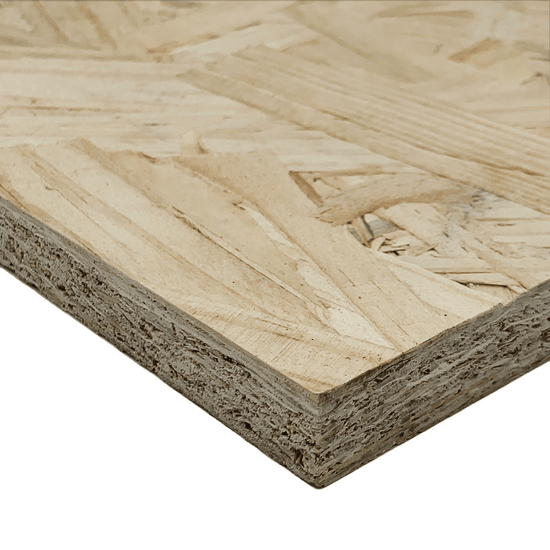

Thickness | 8/11/12/15/18/22/25 mm |

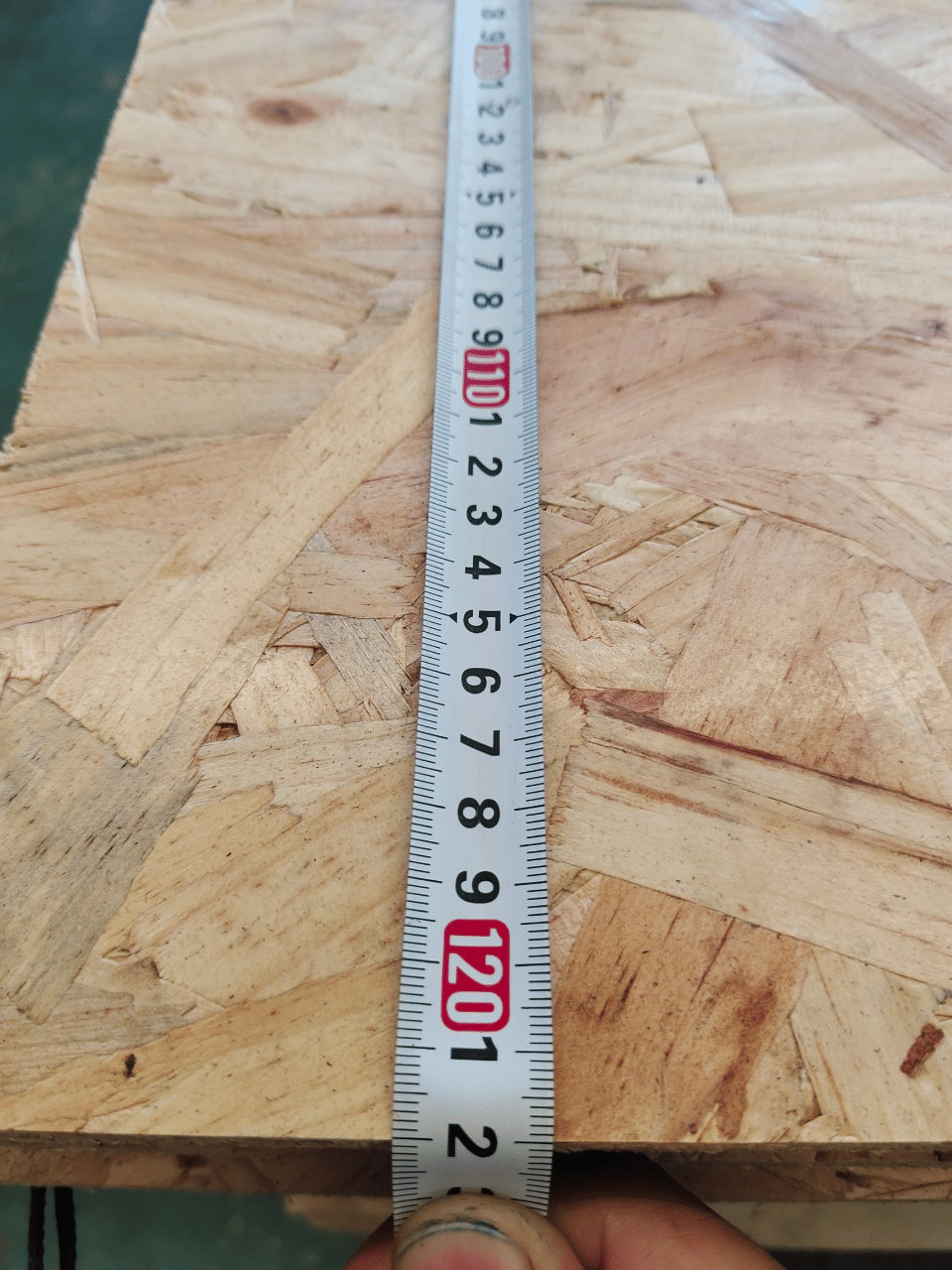

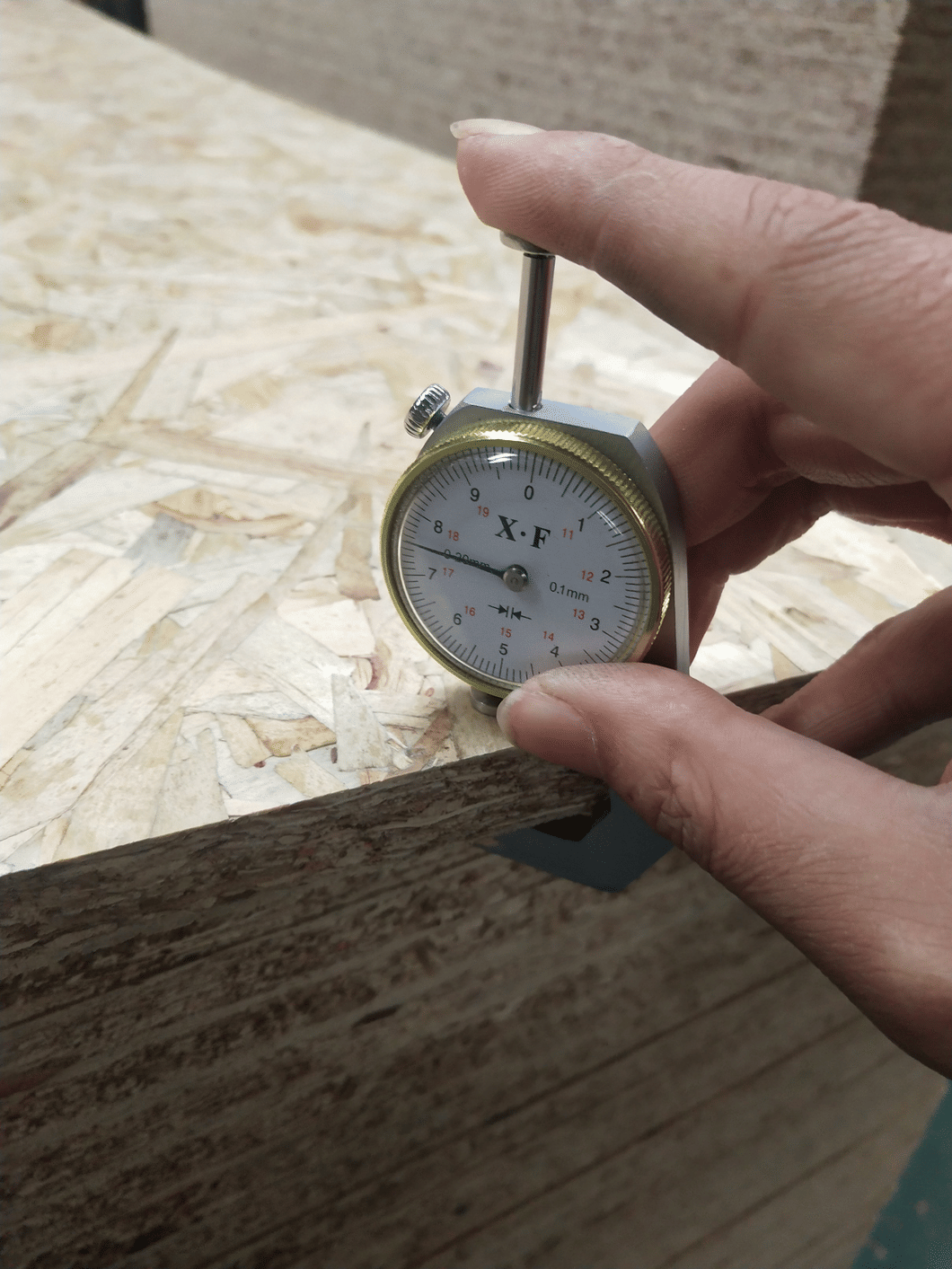

Tolerance | +/-0.5mm in the thickness,+/-0.2mm in the width and length |
Glue | MDI,E0,E1,E2,Melamine,WBP |
Materials | Poplar,All Pine,Combi |

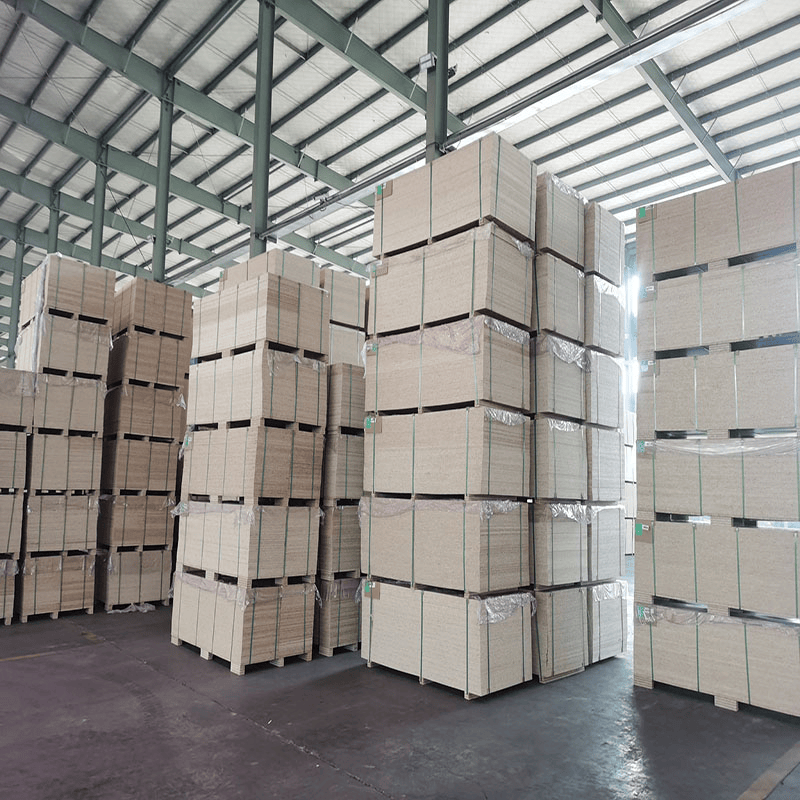

Production Capacity | 900,000 CBM/year(Dieffenbacher production line) |
Density | 600-650 kgs/cbm |
Formaldehyde Emission (mg/100g) | Maximum 8% |
Moisture Content | Maximum 10% |
Elasticity Modulus(parallel) | Average Value(Mpa):≥3500 |
| Minimum Value(Mpa):≥2800 |
Elasticity Modulus(vertical) | Average Value(Mpa):≥1400 |
| Minimum Value(Mpa):≥1120 |
Internal Bond Strength | Average Value(Mpa):≥0.32 |
| Minimum Value(Mpa):≥0.256 |
OSB Grade | OSB/2 - Load-bearing boards for use in dry conditions |
| OSB/3 - Load-bearing boards for use in humid conditions |
| OSB/4 - Heavy-duty load-bearing boards for use in humid conditions |
Advantage | 1.Tight construction and high strength. 2.No twisting,delamination or warping, rotten or decay. 3.Strong against corrosion and fire, water proof, consistent when exposed in the natural or wet environmet,Low formaldehyde emission, Good nailing strength,easy to be sawn, nailed, drilled, grooved, planed, filed 4. Keep the room warmer 5. Protect your ground |
Usage | Can be used for roof decking, roof sarking, wall sheathing flooring, packing,hoarding, signboards and portable building,constructional insulation board |

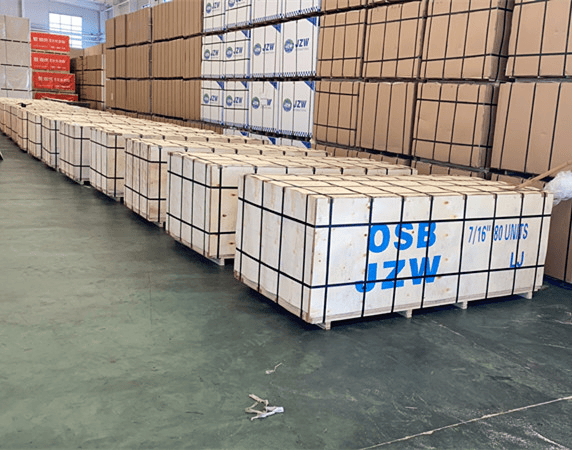

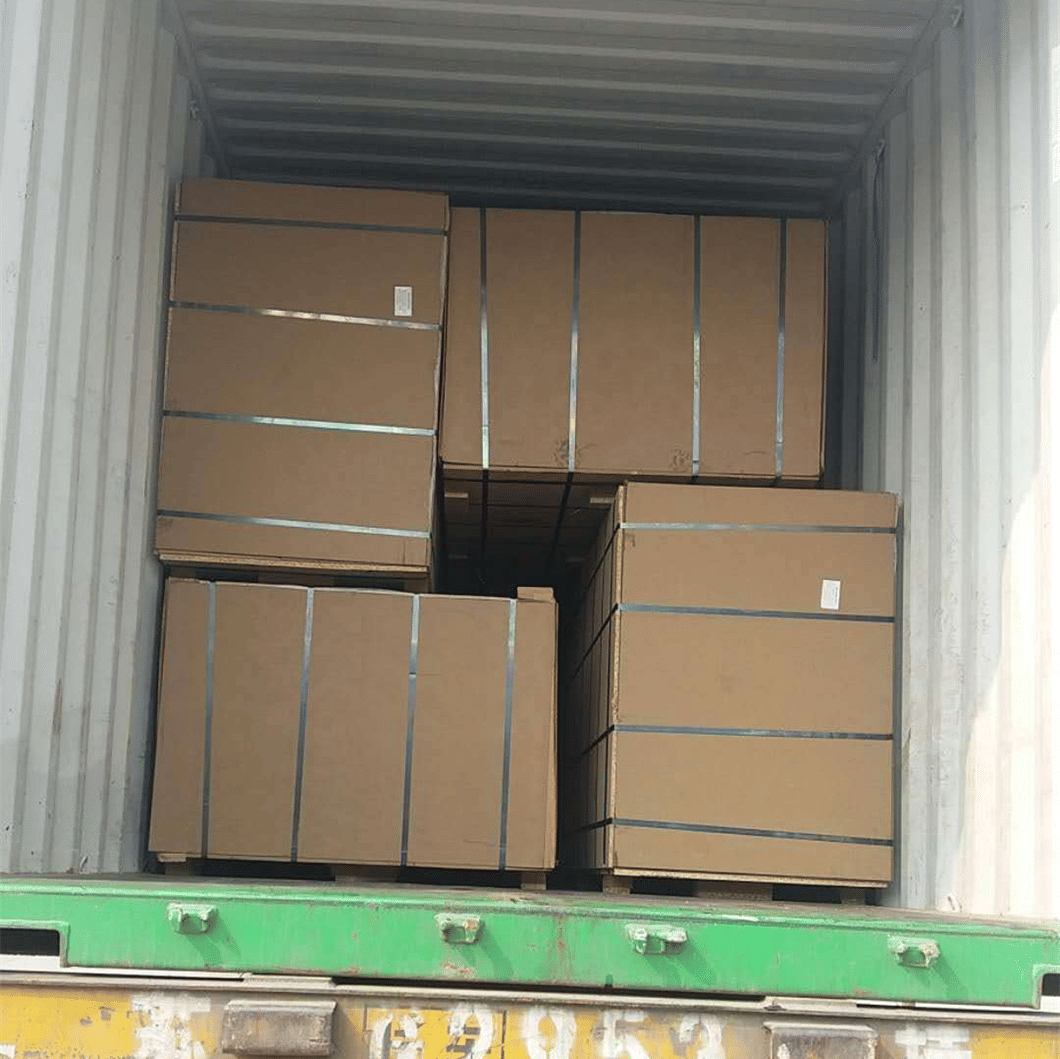

Packaging details | Outer packed by the cardboard or thin plywood,inner packed by the plastic bags,strengthen by the steel or PVC tapes. |
MOQ | 1X40GP |
Price terms | FOB,CIF,CFR |
Payment terms | T/T,L/C at sight |
Delivery time | within 10 days after receiving deposit |
