Selecting the wrong sheet material risks structural failure. It can compromise applied finishes and waste valuable project budgets. Builders face a critical choice when starting any new build. The ongoing debate surrounding plywood vs MDF is rarely about finding one universally superior board. Instead, it involves matching specific material properties to exact project demands. Environmental conditions dictate performance requirements. Finishing goals also play massive roles in this choice. We must evaluate how these panels behave under stress. We must also look at how they handle moisture and accept paint.
You need a reliable method to determine the right core material. Guesswork leads to sagging shelves and peeling edges. This guide provides an evidence-based evaluation framework. You will learn the anatomical differences between these common materials. We will cover head-to-head performance metrics. We will also explore practical implementation strategies. By the end, you will confidently guide your final material selection for any custom woodworking task.
MDF delivers superior results for painted finishes and intricate routing due to its homogenous, void-free core.
Plywood offers higher structural integrity, superior screw-holding capacity, and better moisture resistance for load-bearing or damp environments.
Combining materials (e.g., plywood cabinet boxes with MDF doors) is often the most cost-effective and durable approach for complex builds.
Both materials require specific safety and machining protocols, particularly regarding dust extraction and edge treatment.
Understanding panel anatomy reveals why these boards act differently in the shop. Manufacturing processes dictate their ultimate capabilities. They possess unique internal structures.

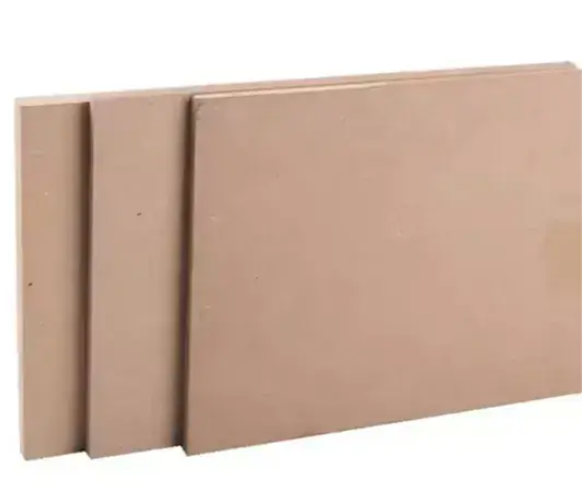

Factories combine fine wood fibers, wax, and synthetic resin. They compress this mixture under high temperature. Extreme pressure forms the final board. This process results in a heavy, flat, isotropic material. It lacks any grain direction. The density remains perfectly uniform from surface to core. You will never find knots inside. You will never encounter voids. It machines predictably across every axis.
Mills peel logs into thin wood veneers. They cross-laminate these layers at alternating right angles. Heavy presses glue them firmly together. This technique produces a dimensionally stable board. It features a specific grain orientation. Cross-lamination gives it high tensile strength. Different grades dictate the quality of the inner core. Lower grades often contain internal voids. High-grade architectural panels feature solid, void-free cores.
Internal structures define structural performance. Plywood resists deflection under heavy loads. It minimizes sagging over time. The alternating grain acts like a supportive web. MDF provides a perfectly uniform density. It excels during machining tasks. However, it lacks interlocking wood fibers. It becomes prone to snapping under sudden impact. It will sag noticeably over long unsupported spans.
Comparing these materials requires a structured approach. We must analyze specific performance categories. Shop environments and project locations dictate priorities.
Plywood boasts exceptional tensile strength. The cross-banded veneers distribute weight efficiently. It excels for long shelving spans. It supports structural framing tasks perfectly. You can build heavy-duty storage racks confidently. It resists bending under persistent weight.
MDF offers significantly lower stiffness. It deflects quickly under sustained loads. It requires shorter spans between supports. You must add structural reinforcement for wider shelves. Solid wood edging helps prevent long-term sag. Common Mistake: Using three-quarter-inch MDF for a 36-inch bookshelf. It will visibly bow within months. You should choose plywood for these applications.
Moisture destroys poorly planned projects. Plywood generally handles environmental shifts better. Exterior grades withstand significant moisture exposure. Marine grades utilize waterproof glues. Standard grades will swell when soaked. They often retain structural integrity after drying. The veneer layers keep the board somewhat cohesive.
MDF remains highly susceptible to water damage. Unsealed edges act like sponges. Water causes permanent swelling. The fibers expand and never shrink back. MR (Moisture Resistant) versions exist. They use special resins. MR panels delay moisture intrusion. They do not eliminate the risk entirely. You must seal every exposed edge meticulously. Best Practice: Keep standard MDF away from damp basements.
Cutting characteristics impact shop efficiency. Plywood proves prone to tear-out across the grain. The face veneer splinters easily. You need sharp, high-tooth-count blades. A scoring blade helps prevent surface damage. Fortunately, wood veneers do not dull tools rapidly. Standard carbide holds its edge well.
MDF cuts flawlessly. It produces zero tear-out. You can route intricate profiles safely. The edges remain crisp. However, it contains high glue and resin content. These chemicals degrade cutting edges. They dull carbide blades significantly faster. Router bits lose their edge quicker. You must plan for increased sharpening maintenance.
Project budgets influence material choices heavily. Plywood requires a higher upfront investment. Costs remain highly variable. The face veneer grade dictates the final expense. Baltic Birch costs significantly more than CDX pine. Lower grades feature knots. You must cut around these defects. This reduces your overall usable yield.
MDF generally offers lower upfront costs per sheet. It provides consistent quality throughout. It features a 100% usable yield. You never have to cut around knots. You never discard sections due to ugly grain. This predictability aids project planning.
Evaluation Metric | Plywood Performance | MDF Performance |
|---|---|---|
Tensile Strength | High (Resists deflection) | Low (Prone to sagging) |
Moisture Resistance | Moderate to High (Grade dependent) | Low (Swells permanently) |
Machining Cleanliness | Prone to tear-out | Flawless, zero tear-out |
Tool Wear | Standard | High (Dulls blades fast) |
Usable Yield | Variable (Defects present) | 100% (Uniform surface) |
General metrics only tell half the story. Practical applications demand specific choices. Let us examine common woodworking tasks. You must deploy each material strategically.
Building cabinets requires balancing weight, durability, and aesthetics. Combining materials often yields the best results.
Cabinet Boxes: Plywood stands as the industry standard. It ensures high durability. It significantly reduces overall hanging weight. Installers appreciate lighter boxes. It holds hinge screws securely inside cross-banded veneers. It withstands interior cabinet wear perfectly.
Cabinet Doors: MDF proves vastly superior here. It excels for painted Shaker-style doors. You can route complex profiles smoothly. It never warps over time. It never shows grain telegraphing through high-gloss paint. Plywood doors often twist. Face veneers eventually telegraph texture through applied finishes.
Living spaces demand both visual appeal and structural stability. Built-ins showcase these requirements perfectly.
Assess the load: Determine the required weight capacity first.
Select shelves: Choose plywood to handle the weight of heavy books. It spans wider gaps without deflecting. You can also use reinforced MDF. Add solid hardwood edging to stiffen it.
Construct partitions: Use MDF for non-load-bearing vertical partitions. It provides a seamless painted surface.
Apply trim: Utilize MDF for face frames and baseboards. It ensures a glass-like painted finish. It hides seams flawlessly after sanding.
Shop furniture prioritizes function over form. Flatness and durability remain paramount.
Assembly Tables: MDF is highly favored for torsion-box designs. It delivers a dead-flat surface. It serves well as sacrificial fences. The low cost allows easy replacement.
Tool Stands: Plywood is preferred for mobile bases. It builds structural tool stands reliably. It offers excellent impact resistance. It dampens heavy machine vibration efficiently. Castors bolt securely into its layers.
Theoretical choices meet practical realities inside the shop. Execution dictates the final quality. You must adapt your joinery and safety protocols. Each panel demands unique handling procedures.
Connecting panels requires specific techniques. Standard wood screws behave differently in each core.
MDF splits easily. You cannot drive screws directly into the edges. You must drill precise pilot holes. Standard tapered wood screws often fail. They wedge the fibers apart. You need specialized confirmat screws. These feature straight shanks and aggressive threads. Dowel joinery also works exceptionally well. Domino tenons provide excellent alignment and strength. Best Practice: Always use parallel-threaded screws when fastening into fiberboard edges.
Plywood holds screws well in the face. It holds them securely in the edges. The cross-grain bites into the screw threads. Voids can occasionally compromise hold strength. If your screw hits a void, it spins freely. You should still use pilot holes. This prevents the outer veneers from splitting. Wood glue bonds strongly to the face veneers.
Raw edges look unfinished. They require covering before final installation. The treatment depends entirely on your material.
MDF edges are highly porous. They drink paint rapidly. You must size them before applying color. You can seal them using diluted wood glue. Specialized high-build primers also work beautifully. Sand the edges gently between coats. This creates a completely smooth surface. Common Mistake: Spraying paint directly onto raw fiberboard edges. They will look rough and fuzzy.
Plywood requires edge-banding. You must hide the exposed alternating plies. Iron-on veneer tape offers a quick solution. Solid wood strips provide durable protection. Apply them using glue and brad nails. Route them flush afterwards. Sometimes, builders leave the edges exposed. The exposed ply look is a popular contemporary design choice. It requires meticulous sanding and clear coating.
Woodworking generates hazards. Sheet goods contain chemical binders. You must protect your respiratory system.
Dust Mitigation: MDF produces a hazardous, fine particulate dust. It hangs in the air indefinitely. It coats every surface in the shop. You must use a high-quality respirator. A paper mask is insufficient. HEPA dust extraction is absolutely mandatory. Connect your router and saw directly to the vacuum. Keep ambient air filtration systems running.
VOCs and Formaldehyde: Manufacturers use urea-formaldehyde resins. These chemicals off-gas over time. You must evaluate indoor air quality impacts. Seek CARB Phase 2 compliance. Look for EPA TSCA Title VI certification. These standards limit formaldehyde emissions. Be especially careful when sourcing imported sheet goods. Cheaper panels often bypass these strict environmental regulations. Protect your clients and yourself by verifying certifications.
Selecting the right panel determines your project outcome. You now understand the anatomical differences. You know how they perform under stress. Use this framework to guide your purchasing strategy. Follow these final action-oriented takeaways.
Prioritize the finish: Choose MDF if your priority is a flawless painted finish. It dominates for intricate routing and cost-control on non-structural components.
Demand structural rigidity: Choose Plywood if the project demands extreme strength. It excels for moisture resistance and stained wood aesthetics. It handles heavy mechanical fastening reliably.
Combine them strategically: Build robust cabinet boxes using veneers. Hang heavy, stable, beautifully painted fiberboard doors on them.
Assess load requirements: Review your specific load demands before buying. Calculate the weight your shelves must support.
Next Step: Finalize your cut list. Confirm your finishing plans. Place your material order based on these specific project realities.
A: Standard fiberboard swells permanently when exposed to water. You can use MR-MDF (Moisture Resistant) for delayed moisture intrusion. However, exterior-grade plywood remains the safer choice for high-humidity zones. It resists structural failure if plumbing leaks occur.
A: Yes, it is significantly lighter. The solid compressed resin and fiber core make fiberboard very dense. This weight difference impacts transport logistics. It also influences your choice of wall-hanging hardware for heavy cabinets.
A: No. It holds screws adequately in the face but fails easily on the edges. Edge-fastening requires precise pilot holes and specialized confirmat screws. Plywood offers superior edge-holding power due to its cross-laminated grain structure.
A: No. It has no internal or external grain. Stain will just look like a muddy, flat color. It must be painted or covered in veneer. Plywood features natural wood face veneers, allowing for beautiful, traditional stain applications.
