High voltage cables are essential components in the transmission and distribution of electrical power. They are designed to carry large amounts of electricity over long distances with minimal losses. A critical aspect of these cables is the incorporation of semiconducting materials, which play a pivotal role in ensuring their efficiency and reliability. Understanding the purpose of semiconductors in high voltage cables is fundamental for professionals in the electrical and power industries.
Semiconductors in high voltage cables are not the same as the semiconductor devices found in electronic circuits. Instead, they refer to semiconducting layers within the cable structure that manage electric stress and enhance performance. This article delves into the function of these semiconducting layers, their importance in cable design, and how they contribute to the overall effectiveness of High Voltage Cable systems.

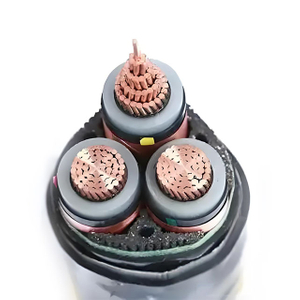

High voltage cables are complex assemblies consisting of several layers, each serving a specific purpose. The primary components include the conductor, insulation, semiconducting layers, metallic shield, and outer sheath. The conductor, typically made of copper or aluminum, carries the electric current. Surrounding the conductor is the insulation layer, which prevents electrical leakage and protects against short circuits.
Between the conductor and the insulation, as well as between the insulation and the metallic shield, are semiconducting layers. These layers are crucial for controlling the electric field within the cable. The metallic shield provides a return path for fault currents and shields external objects from the electromagnetic fields generated by the cable. Finally, the outer sheath protects the cable from environmental factors such as moisture, chemicals, and mechanical damage.
In high voltage cables, managing the electric field is vital to ensure safe and efficient operation. The electric field within a cable must be uniform to prevent stress concentrations that can lead to insulation breakdown. Uneven electric fields can cause partial discharges, which degrade the insulation over time and may result in catastrophic failure.
Semiconducting layers play a key role in distributing the electric field evenly across the insulation. By smoothing out irregularities and eliminating air gaps between layers, semiconductors help maintain the integrity of the insulation material. This uniformity is essential in high voltage applications where the voltages involved can exceed several hundred kilovolts.
Semiconducting layers in high voltage cables are made of materials that have electrical conductivity between that of conductors and insulators. These layers are typically composed of polymer compounds filled with conductive particles like carbon black. They are applied as thin coatings between the conductor and the insulation, and between the insulation and the metallic shield.
The primary function of these semiconducting layers is to ensure a smooth transition of the electric field within the cable. They prevent the formation of electric field concentrations at the interfaces between different materials, which can cause insulation stress and lead to premature failure. By providing a controlled path for the electric field, semiconducting layers enhance the cable's performance and longevity.
The materials used for semiconducting layers must possess specific electrical and mechanical properties. Commonly, cross-linked polyethylene (XLPE) or ethylene-propylene rubber (EPR) is used as a base polymer, combined with conductive fillers. The fillers, such as carbon black, impart semiconducting properties to the layer.
Advanced formulations may include additives that enhance thermal stability, mechanical strength, and compatibility with adjacent layers. The processing of these materials requires precise control to ensure uniform conductivity and thickness. The quality of the semiconducting layers directly affects the overall performance of the Cables.
Semiconducting layers improve the electrical performance of high voltage cables by ensuring uniform electric field distribution. This uniformity reduces the likelihood of partial discharges, which can deteriorate the insulation material. By minimizing electrical stress, semiconducting layers contribute to the safe operation of the cable under high voltage conditions.
Additionally, these layers prevent the accumulation of space charges within the insulation. Space charges can distort the electric field and lead to localized stress. The semiconducting layers provide a path for these charges to dissipate, maintaining the cable's dielectric properties and enhancing its reliability.
By reducing electrical stress on the insulation, semiconducting layers significantly extend the lifespan of high voltage cables. The prevention of partial discharges and insulation degradation means that the cables can operate safely for longer periods without the need for maintenance or replacement. This longevity is crucial for power transmission infrastructure, where downtime can be costly and disruptive.
Furthermore, semiconducting layers improve the thermal performance of the cable. By facilitating better electric field management, they reduce the generation of heat within the insulation. Lower operating temperatures contribute to the overall durability of the cable and reduce the risk of thermal breakdown.
The application of semiconducting layers in high voltage cables requires precise manufacturing techniques. Extrusion processes are commonly used to apply the semiconducting materials uniformly around the conductor and insulation. The layers must be free from defects such as voids, contaminants, or thickness variations, which can compromise their effectiveness.
Manufacturers employ strict quality control measures to ensure the integrity of the semiconducting layers. Advanced equipment and continuous monitoring are essential to maintain the required specifications. The use of cleanroom environments and controlled processing conditions helps prevent contamination and ensures the high quality of the Power Cables.
High voltage cables undergo rigorous testing to verify their performance and safety. Standards organizations such as the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE) provide guidelines for testing procedures. Tests include electrical stress tests, partial discharge measurements, and thermal cycling.
The semiconducting layers are evaluated for their electrical conductivity, adherence to adjacent layers, and absence of defects. Compliance with industry standards ensures that the cables will perform reliably under operational conditions. These tests are critical for applications where failures can have severe consequences, such as in power grids and industrial facilities.
Recent advancements in material science have led to the development of new semiconducting compounds for high voltage cables. Researchers are exploring nanocomposite materials that offer improved electrical and mechanical properties. These materials can provide better conductivity, flexibility, and thermal stability, enhancing the performance of semiconducting layers.
For instance, incorporating graphene or carbon nanotubes into polymer matrices has shown promise in creating high-performance semiconducting layers. These nanomaterials can enhance the electrical conductivity and mechanical strength of the layers, leading to more robust and efficient cable designs.
Sustainability is becoming increasingly important in cable manufacturing. Developing semiconducting materials that are environmentally friendly and recyclable is a priority for the industry. Researchers are investigating biodegradable polymers and non-toxic conductive fillers to reduce the environmental impact of cable production and disposal.
Moreover, improving the efficiency of high voltage cables through better semiconducting materials can contribute to energy conservation. By reducing losses and enhancing the reliability of power transmission, these innovations support the global effort to create more sustainable energy systems.
Despite the benefits of semiconducting layers, there are technical challenges associated with their use. Ensuring perfect interfaces between layers is difficult, and any imperfections can lead to field distortions. Manufacturing processes must continuously improve to minimize defects and enhance layer adhesion.
Additionally, the long-term aging of semiconducting materials under electrical, thermal, and environmental stresses is a concern. Research into aging mechanisms and the development of more durable materials is essential to extend the service life of high voltage cables further.
Looking ahead, the integration of smart technologies into high voltage cables is an emerging trend. Embedding sensors within the semiconducting layers could enable real-time monitoring of cable conditions, such as temperature, mechanical stress, and partial discharge activity. This data can be used for predictive maintenance and improve the reliability of power networks.
Furthermore, the development of superconducting cables presents a future avenue where semiconducting layers might play a different role. While superconductors eliminate electrical resistance, managing the electric field will still be crucial. Semiconducting materials may need to adapt to these new applications, requiring further innovation in material properties and cable design.
Semiconductors in high voltage cables are integral to the safe and efficient transmission of electrical power. By controlling electric field distribution and minimizing stress on the insulation, semiconducting layers enhance the performance and longevity of these critical components. Advances in material science and manufacturing processes continue to improve the effectiveness of semiconducting materials, addressing technical challenges and meeting the demands of modern power systems.
Understanding the purpose and function of semiconductors in high voltage cables is essential for professionals involved in the design, manufacturing, and maintenance of power transmission infrastructure. As the industry evolves, ongoing research and innovation will further enhance the capabilities of Power Cables, contributing to more reliable and sustainable energy networks worldwide.
