Waterproof melamine board is a wood-based panel designed for interior environments with regular moisture exposure. The product features melamine-impregnated paper surfaces bonded to a plywood core through a two-stage hot pressing process. It is manufactured by Beijing Tianyuan Rongli Technology Co., Ltd., with production facilities located in Hebei and Tianjin regions. This panel serves as a substrate material for cabinetry, vanity units, and furniture components in residential and commercial construction projects.

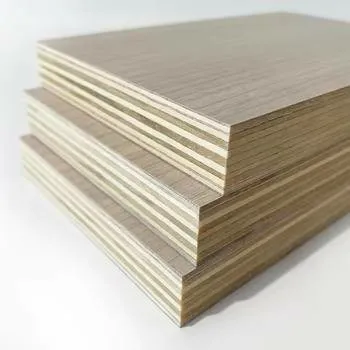

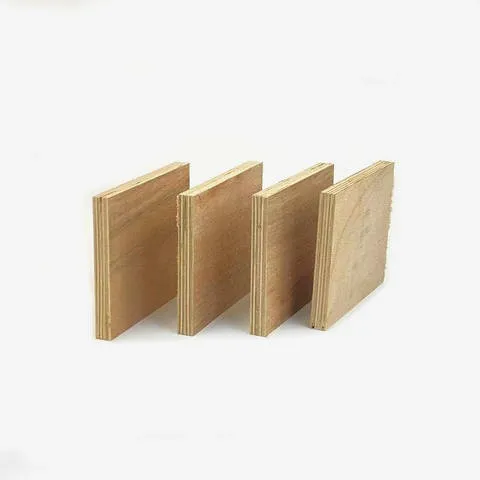

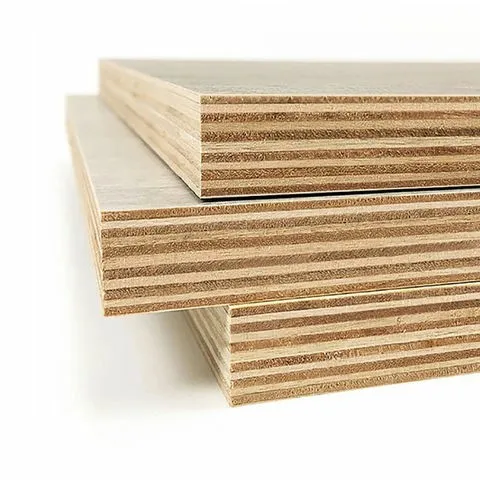

The panel core is constructed from alternating veneer layers of poplar and birch wood. The plywood structure is available in configurations of 5-ply, 7-ply, 9-ply, 13-ply, and 15-ply, corresponding to different finished thicknesses. Each veneer layer is bonded with formaldehyde-controlled adhesive available in ENF, E0, E1, and E2 grades.

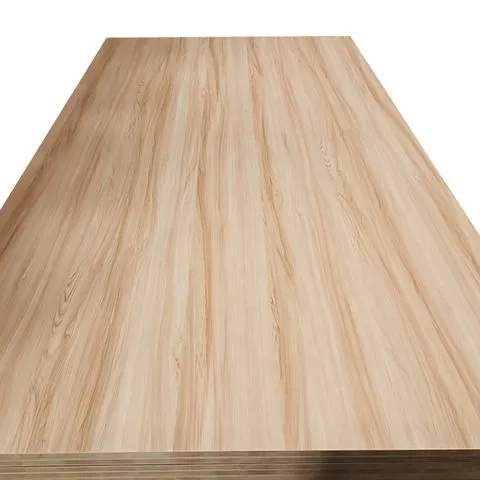

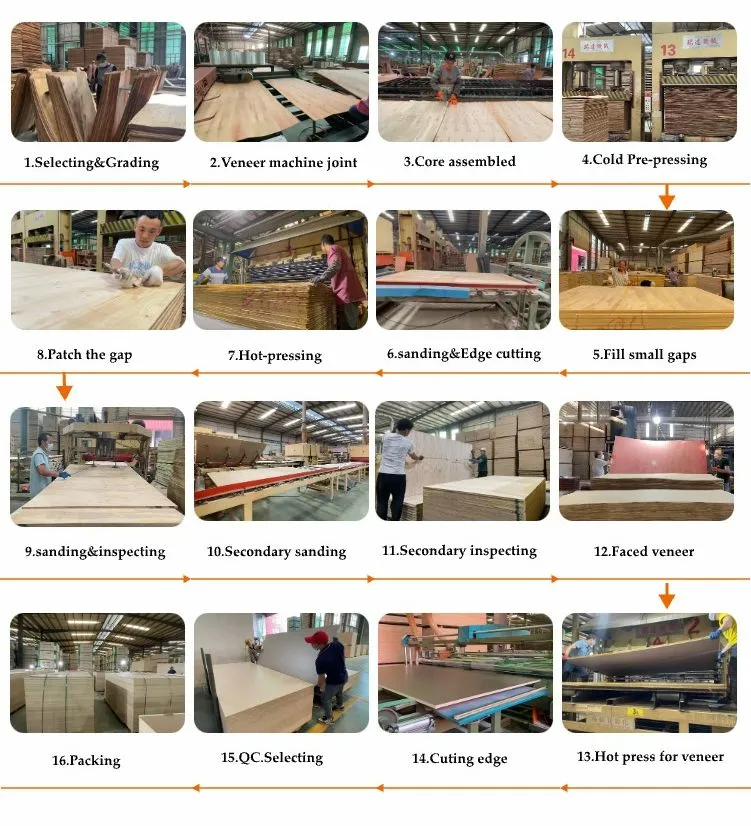

Both faces of the panel are covered with melamine-impregnated decorative paper, applied through double-sided decoration. The melamine surface forms a sealed layer that acts as a primary moisture barrier and provides a consistent decorative finish. A knife-drawing process is applied during production, where narrow wood strips are inserted to fill veneer gaps prior to hot pressing, resulting in a more uniform surface after compression.
Item | Details |
|---|---|
Product Name | Melamine Plywood |
Brand Name | Tianyuan |
Main Material | Poplar, Birch |
Veneer Board Surface Material | Melamine Paper |
Veneer Board Surface Finishing | Double-Sided Decoration |
Specification | 1220mm*2440mm |
Thickness | 5mm/9mm/12mm/18mm/21mm/25mm/etc |
Formaldehyde Emission Standards | E0 |
Certification | CE/EU, FDA, FSC |
Use | Indoor |
Application | Hotel, Furniture, Home Decoration |
Design Style | Modern |
Project Solution Capability | Total Solution for Projects |
After-Sale Service | Online Technical Support |
Trademark | Tianyuan |
Origin | China |
Product name | melamine board |
|---|---|
Application | Indoor, cabinet,Decoration, Furniture, Package |
Advantage | 1. Two hot pressing processes, so that the plywood adhesion, nail holding force is stronger, the finish is better, so that the plywood used will be more durable than other hot pressing. 2. Knife - drawing:normal manufacturer won't have this process. Useknife cut the small length strip of wood to fill up the gap of veneer,so that the plywood will be more smooth and durable after hot-pressing. |
Face/Back | Melamine paper |
Core | Poplar, Birch |
Glue | ENF,E0, E1,E2 |
Thickness | 5-25mm |
Thickness tolerance | +/-2mm |
Size | 1220*2440mm, or customized |
Grade | First-class |
Moisture Content | 6~16% |
Package | The whole package is wrapped in waterproof plastic bags, the bottom is wrapped in pallets, and then fixed with special packing rope. |
MOQ | 1*40HQ |
Price Terms | FOBCurrency USD |
Payment | T/T , 50% payment in advance, the balance of the goods before delivery |
Supply Capacity | 50000CBM/month |
Certification | ISO9001 |

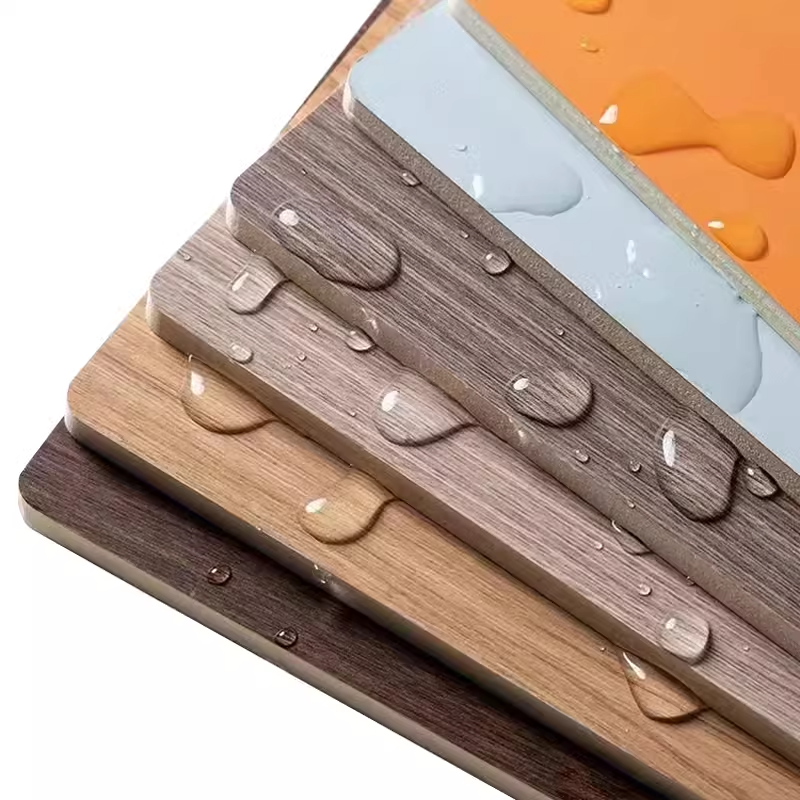

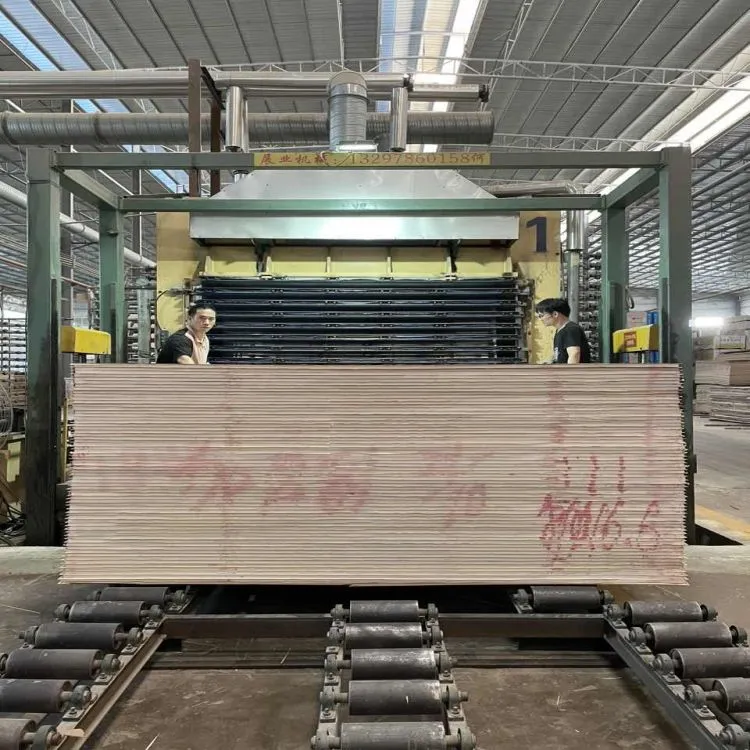

The water resistance of melamine board is achieved through multiple production factors. The two-stage hot pressing process enhances bond strength between veneer layers and improves the density of the panel structure, reducing pathways for moisture penetration. The melamine paper surface provides a non-porous finish on both faces of the panel.
For kitchen and bathroom applications, proper edge sealing after cutting is recommended to maintain moisture performance at exposed panel edges. The product is suitable for environments with ambient humidity fluctuations typical of residential kitchens and bathrooms, rather than direct and prolonged water submersion.

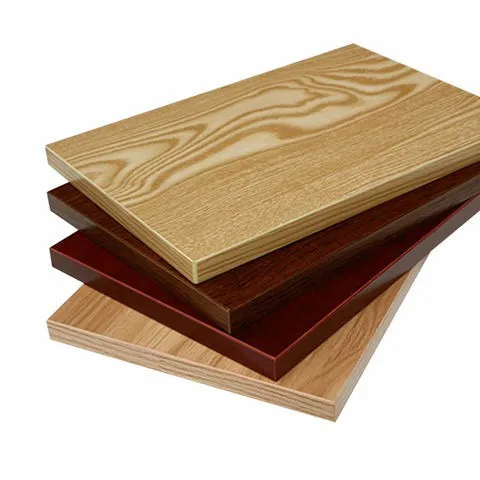

The standard panel dimension is 1220mm × 2440mm. Thickness options include 5mm, 9mm, 12mm, 18mm, 21mm, and 25mm, with additional thicknesses available upon request. Custom sizing is supported for volume orders with specific project requirements.
5-9mm: Back panels, drawer bottoms, interior partitions
12-18mm: Cabinet carcasses, door panels, shelf components
21-25mm: Heavy-duty shelving, countertop substrates, structural components

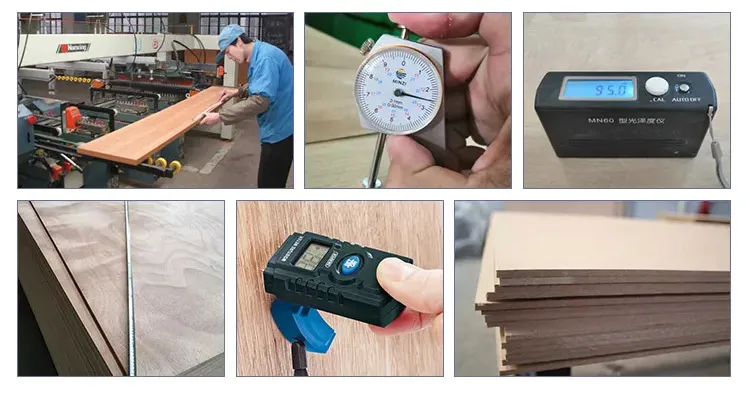

The production process holds ISO 9001 certification. Finished panels undergo inspection across five dimensions: size accuracy, thickness consistency, formaldehyde emission levels, glue bond strength, and moisture content. Each batch is tested by an in-house quality control team before packaging.
Additional product certifications include CE/EU compliance, FDA food contact suitability, and FSC chain-of-custody options for sourced materials. Formaldehyde emission standards meet E0 classification as the standard offering, with ENF grade available for projects requiring lower emission levels.
The panel is used in the production of kitchen cabinets, bathroom vanity units, wardrobe systems, and office furniture. The melamine surface requires no additional finishing, reducing production steps for furniture manufacturers.
For hotel interior fit-outs and multi-unit residential projects, melamine board provides consistent material supply across large order volumes. The double-sided finish supports visible panel applications such as exposed cabinet sides and shelf edges.
Beyond furniture, the material is applied to decorative wall panels, display fixtures, and specialized packaging components where a smooth, consistent surface is required.

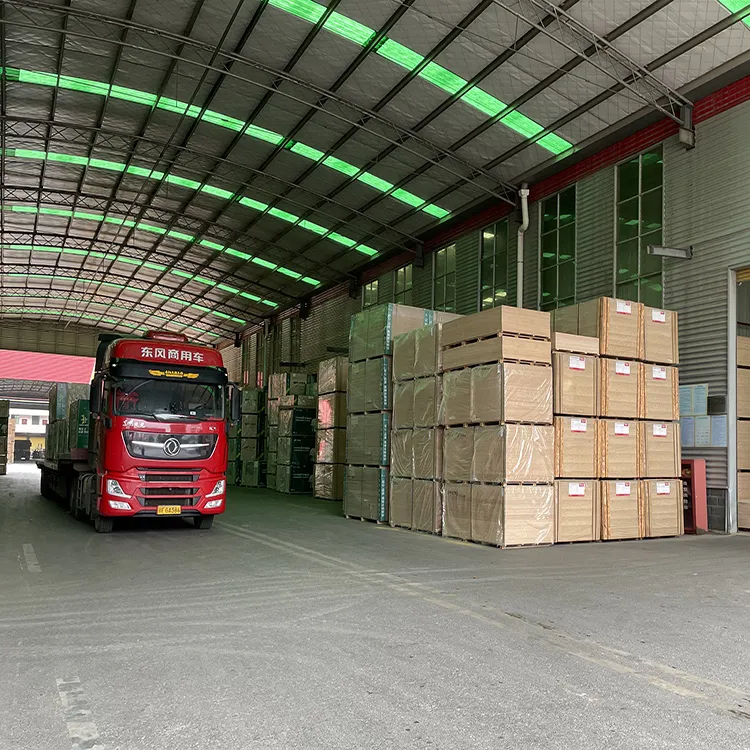

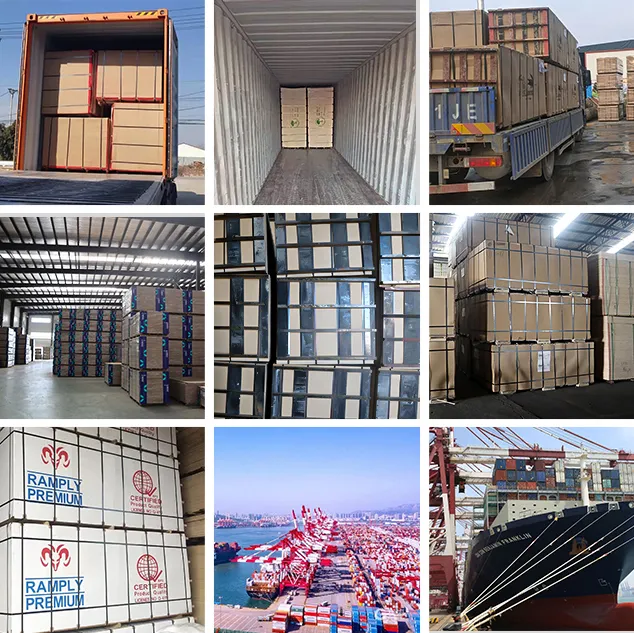

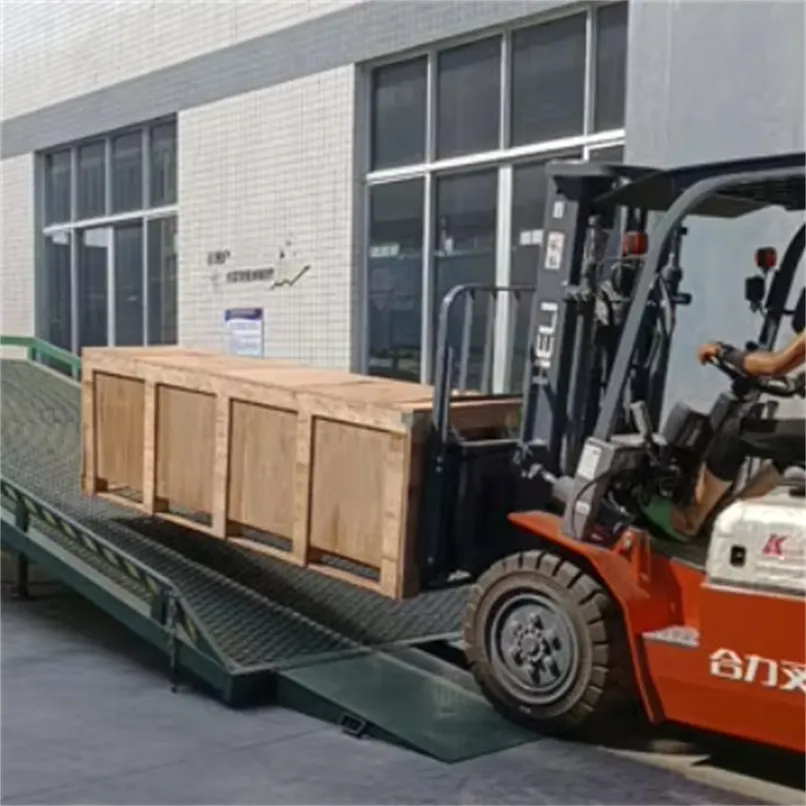

Panels are wrapped in waterproof plastic bags, stacked on wooden pallets, and secured with packing straps for container transport. The minimum order quantity is one 40HQ container. Price terms are FOB Tianjin Port in USD currency. Payment terms are 50% telegraphic transfer deposit with the remaining 50% settled prior to shipment. Standard production lead time is 2-3 weeks after deposit confirmation. Monthly production capacity reaches 50,000 cubic meters.
Sample pieces are provided at no charge, with courier fees billed to the recipient account.
Most orders are produced within 2-3 weeks following deposit receipt. Custom specifications may require additional time.
Telegraphic transfer is the standard payment method, with a 50% deposit and 50% balance before shipment.
Shipments depart from Tianjin Port.
Custom dimensions, thicknesses, and decorative patterns are available for volume orders. OEM and ODM requests are accepted.
The quality control team inspects each production stage, including raw material selection, pressing parameters, and finished panel testing across dimensional accuracy, formaldehyde emission, bond strength, and moisture content.
