In the realm of electrical wiring and installations, understanding the nuances between different types of cables is crucial for both safety and performance. Two fundamental categories that often come into consideration are Sheathed Cable and non-sheathed cable. These cables play pivotal roles in various electrical applications, yet they differ significantly in their construction, application, and safety features. This comprehensive analysis aims to delve into the distinctions between sheathed and non-sheathed cables, exploring their unique characteristics, advantages, and practical implications in various electrical systems.

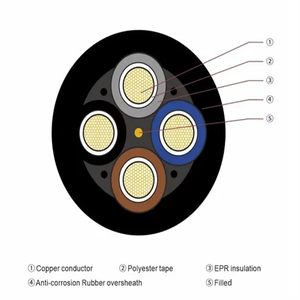

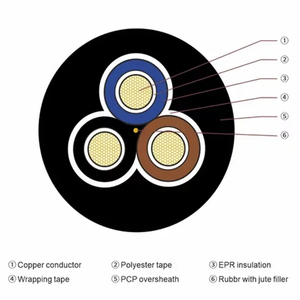

A sheathed cable is an electrical cable encased in an outer protective layer known as a sheath. This sheath serves as a barrier against environmental factors such as moisture, chemicals, mechanical damage, and electromagnetic interference. The primary components of a sheathed cable include one or more conductors, insulation around each conductor, and an overall sheath encompassing all the insulated conductors. The sheath is typically made from materials like PVC (Polyvinyl Chloride), PE (Polyethylene), or rubber, each offering different protective properties suited to specific applications.
Sheathed cables are available in various types, each designed for specific purposes. Common types include:
Armored Cables: These cables have a metal armor layer beneath the sheath, providing enhanced mechanical protection. They are suitable for harsh environments where the cable might be exposed to physical damage.

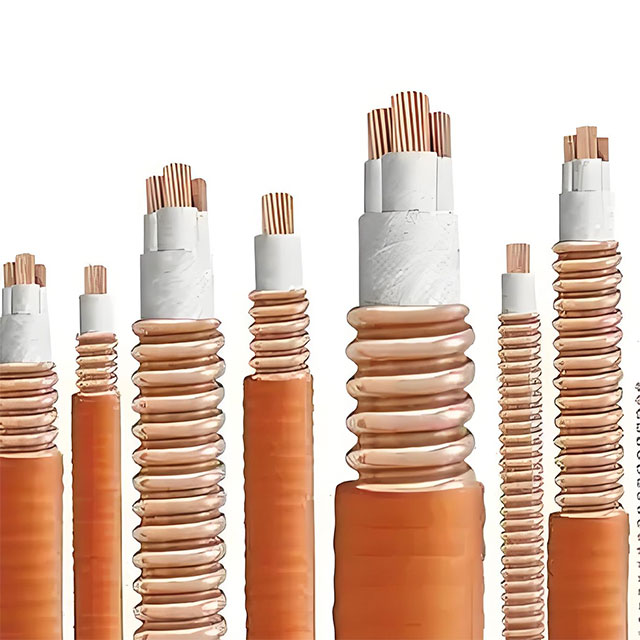

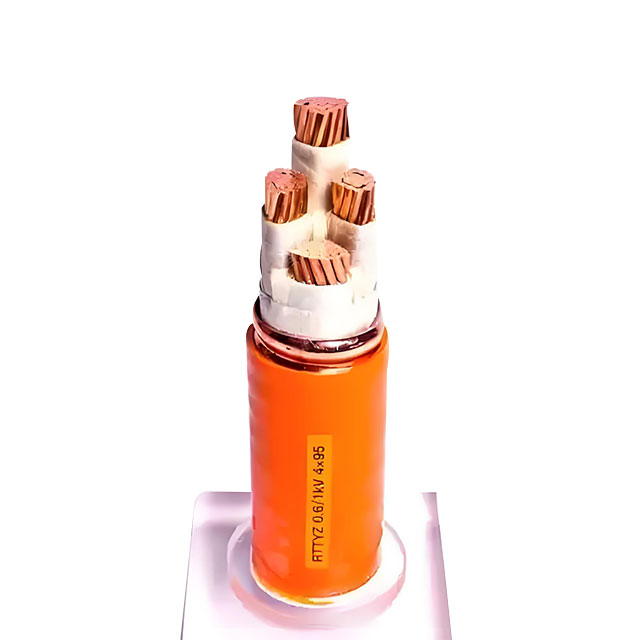

Mineral-Insulated Cables: Comprised of copper conductors inside a copper sheath, filled with mineral insulation (usually magnesium oxide). They offer excellent fire resistance and are used in critical installations where circuit integrity must be maintained under fire conditions.

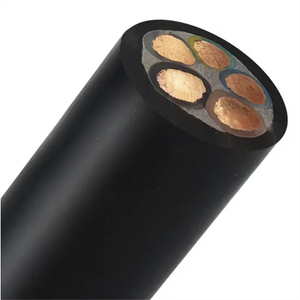

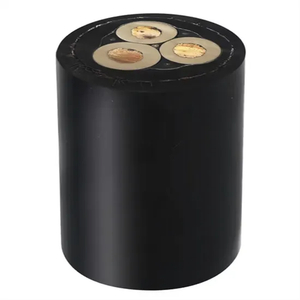

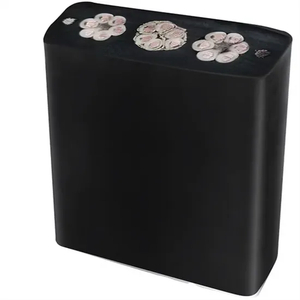

Flexible Cables: Designed with stranded conductors and flexible sheathing materials, these cables are ideal for applications requiring frequent movement or bending.
Sheathed cables are widely used in both residential and industrial settings. Their protective outer layer makes them suitable for outdoor installations, underground wiring, and environments exposed to moisture or corrosive substances. For instance, sheathed cables are commonly used in power distribution networks, control systems, and machinery interconnections where durability and protection are paramount.
A non-sheathed cable lacks the overall protective sheath found in sheathed cables. It typically consists of insulated conductors without an additional outer layer. These cables are designed for use within protective installations where the environment poses minimal risk to the cable's integrity. The absence of a sheath makes them less bulky and more flexible, which can be advantageous in certain applications.
Non-sheathed cables commonly include:
Twin & Earth Cables: Consist of two insulated conductors and an earth conductor, used primarily in fixed domestic wiring where the cables are installed within walls or conduits.

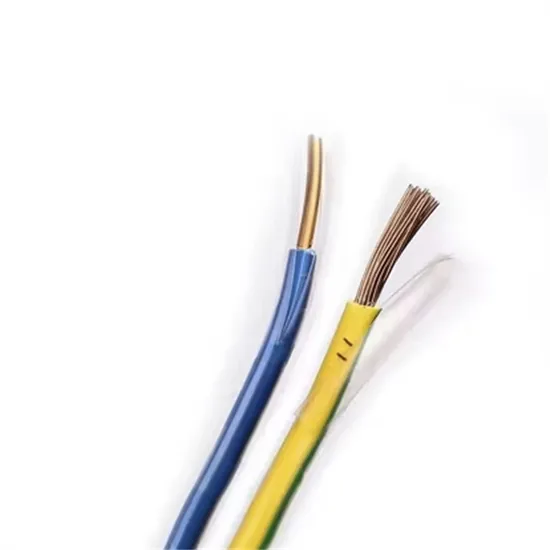

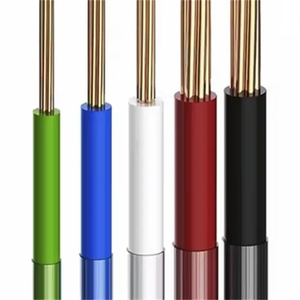

Single-Core Wires: Used for internal wiring of devices and control panels, these wires are installed within enclosures that provide necessary protection.
Busbar Cables: Employed in electrical panels and switchgear, these cables facilitate the distribution of power within protected environments.
Non-sheathed cables are suitable for indoor applications where cables are either concealed within building structures or installed in protective conduits and trunking systems. They are commonly used in residential and commercial buildings for lighting circuits, socket wiring, and internal connections within electrical equipment.
The most apparent difference lies in their construction. Sheathed cables have an additional outer layer that provides mechanical protection and environmental resistance. This sheath can be made from various materials depending on the required properties, such as flame retardancy, oil resistance, or UV stability. Non-sheathed cables, on the other hand, rely on the insulation around each conductor without an extra protective layer, making them more vulnerable to external factors unless properly installed within protective systems.
Sheathed cables are versatile and can be used in a wide range of environments, including outdoors, underground, and in industrial settings where exposure to harsh conditions is expected. Their robust construction allows them to withstand mechanical stresses, moisture, chemicals, and fluctuations in temperature. Non-sheathed cables are generally confined to indoor use within protected environments. They are suitable where the risk of mechanical damage is minimal, such as behind walls, within conduits, or inside electrical enclosures.
Safety is a critical consideration in cable selection. Sheathed cables offer enhanced safety features due to their protective outer layer, reducing the risk of electric shock, fire hazards, and circuit failures caused by external damage. Non-sheathed cables require careful installation to ensure they are adequately protected by other means, such as conduits or trunking. Compliance with electrical codes and standards often dictates the type of cable that must be used in specific situations to ensure safety and reliability.
Sheathed cables provide several benefits:
Enhanced Protection: The sheath protects against physical damage, moisture ingress, chemical exposure, and other environmental factors.
Versatility: Suitable for a wide range of applications, including industrial, commercial, and residential settings.
Safety: Reduces the risk of electrical hazards by preventing direct contact with live conductors and mitigating insulation degradation.
Despite their benefits, sheathed cables have some drawbacks:
Increased Cost: The additional materials and manufacturing processes make sheathed cables more expensive than their non-sheathed counterparts.
Bulkiness: The sheath adds bulk and weight, which can be a disadvantage in tight installations or where space is limited.
Installation Complexity: Requires careful termination to maintain the integrity of the sheath and ensure proper grounding if metallic sheaths are used.
Non-sheathed cables offer their own set of benefits:
Cost-Effective: Less expensive due to the absence of a sheath, making them economical for large projects.
Flexibility: Easier to handle and install in confined spaces owing to their reduced size and weight.
Simplified Termination: Without a sheath to contend with, cable termination can be more straightforward.
The limitations of non-sheathed cables include:
Vulnerability: Lack of an outer sheath means less protection against environmental factors and mechanical damage.
Limited Use Cases: Not suitable for outdoor or harsh environments without additional protective measures.
Safety Risks: Improper installation can lead to exposure of live conductors, increasing the risk of electric shock or fire.
Compliance with electrical standards and regulations is imperative when selecting and installing cables. Organizations such as the International Electrotechnical Commission (IEC), National Electrical Code (NEC), and local regulatory bodies provide guidelines on the appropriate use of sheathed and non-sheathed cables. These standards dictate aspects like permissible applications, installation methods, and safety requirements to prevent hazards. For instance, the NEC specifies where non-sheathed cables can be used and mandates protective conduits in certain conditions.
When choosing between sheathed and non-sheathed cables, consider the environment in which the cable will operate. For outdoor, underground, or industrial environments, Sheathed Cable is typically necessary to withstand environmental stresses. In protected indoor environments, non-sheathed cables may suffice, provided they are installed according to code.
Assess the potential for mechanical damage. Areas prone to impact, abrasion, or where cables are exposed should employ sheathed cables or additional protective measures such as conduits for non-sheathed cables.
Consider the electrical load, voltage levels, and current-carrying capacity required for the application. Both sheathed and non-sheathed cables come in various sizes and conductor materials, including copper sheathed cable, which provides excellent conductivity and durability.
Ensure that the cable choice meets all relevant safety standards and regulations. Failure to comply can result in legal repercussions and compromise the safety of the installation.
Cables should be handled and stored according to manufacturer guidelines. Sheathed cables, while robust, can still be damaged if mishandled. Non-sheathed cables require extra care to prevent insulation damage during installation.
For non-sheathed cables, the use of conduits, trunking, or raceways is essential to provide the necessary protection. These systems also aid in organizing and securing cables, reducing the risk of accidents and facilitating maintenance.
Proper termination is critical for both types of cables. Sheathed cables may require the sheath to be grounded, especially if it is metallic, to prevent potential electrical hazards. Non-sheathed cables must ensure that insulation is intact up to the connection point to prevent exposed conductors.
In an industrial plant with harsh environmental conditions, including exposure to chemicals and mechanical hazards, sheathed cables are essential. The outer sheath not only protects the conductors but also extends the cable's service life by resisting corrosive substances.
For residential lighting circuits concealed within walls, non-sheathed cables are often used. These cables, installed within the structure, are protected from physical damage, making the additional sheath unnecessary. However, local codes may dictate specific requirements to ensure safety.
When installing garden lighting or outdoor power outlets, sheathed cables are preferred due to their ability to resist moisture and UV radiation. They can be directly buried or run above ground with minimal additional protection.
The cable industry continually evolves, incorporating new materials and technologies to enhance performance and safety. Innovations such as low-smoke zero-halogen (LSZH) sheaths reduce toxic fumes in the event of a fire, improving safety in enclosed spaces. Similarly, developments in conductor materials and insulation compounds contribute to more efficient and durable cables. Understanding these advancements is crucial for professionals tasked with selecting the most appropriate cable for an application.
Selecting between sheathed and non-sheathed cables requires a thorough understanding of the application's demands, environmental conditions, and regulatory requirements. Cables play a vital role in the safety and functionality of electrical systems, and making an informed choice ensures long-term reliability and compliance. Sheathed cables offer enhanced protection and versatility but at a higher cost, while non-sheathed cables provide a cost-effective solution for protected environments. Professionals must weigh these factors carefully, keeping abreast of industry developments to make decisions that optimize performance and safety in their electrical installations.
