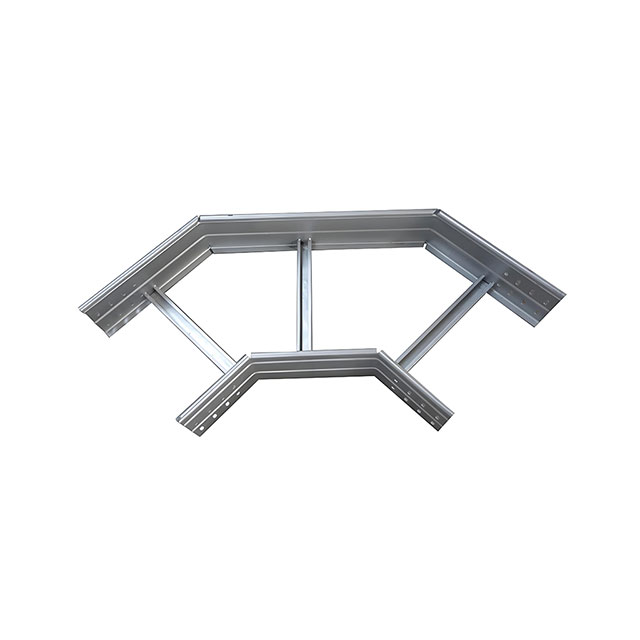

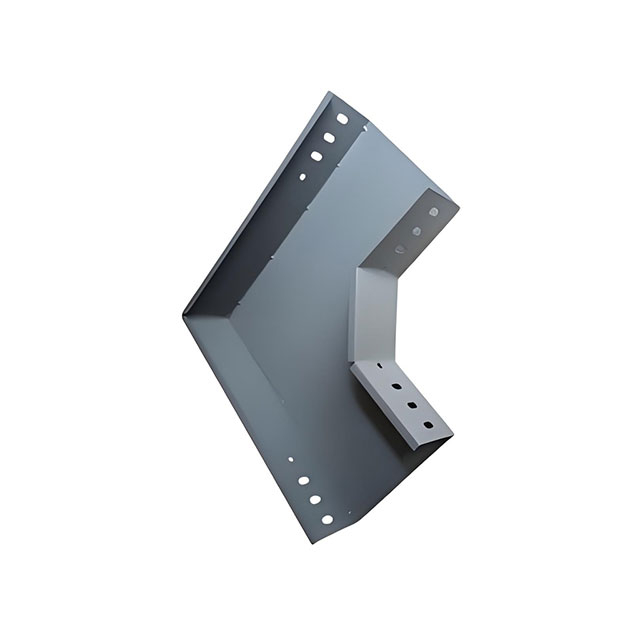

Cable Tray Elbows are essential components in cable routing systems, designed to facilitate smooth and secure changes in direction for cables within tray systems. These elbows are precision-manufactured from high-quality materials such as galvanized steel, stainless steel, or corrosion-resistant thermoplastics, ensuring durability and compatibility with various cable tray types. The design features radiused inner corners to prevent cable damage from sharp bends, while the outer structure provides robust support to maintain the integrity of the cable tray system.
Available in standard angles (30°, 45°, 60°, and 90°) and custom configurations, Cable Tray Elbows can be easily integrated into new or existing installations. The connectors are designed for quick and secure attachment, with pre-drilled holes and matching flanges that align seamlessly with straight trays and other fittings. The smooth internal surface minimizes friction during cable pulling, reducing installation time and preventing abrasion to cable jackets.
Cable Protection: Rounded inner radii conform to industry standards for minimum bend radii, protecting cables from mechanical stress and ensuring compliance with electrical codes.
Material Versatility: Offered in multiple materials to suit different environments—galvanized steel for general industrial use, stainless steel for corrosive settings, and thermoplastics for lightweight or non-conductive needs.
Easy Installation: Pre-engineered flanges and standardized bolt patterns allow for quick assembly without specialized tools, reducing labor costs and project downtime.
Load-Bearing Consistency: Maintains the same load capacity as the connected straight trays, ensuring the entire system can support the specified cable weight even around bends.
Aesthetic and Functional Design: Smooth external surfaces and consistent finish enhance the visual appeal of cable routing systems while providing practical benefits in maintenance and cable management.
Cable Tray Elbows are indispensable in any cable routing system that requires directional changes, including:
Commercial Buildings: Used in raised floors, ceilings, and wall cavities to route cables neatly around corners in office complexes, schools, and hospitals.
Industrial Plants: Guide cables through complex machinery layouts, mezzanines, and production lines, ensuring safe and organized routing in high-vibration environments.
Data Centers: Create clean, efficient pathways for high-density network cables in server rooms, minimizing signal interference and improving airflow around equipment racks.
Transportation Infrastructure: Used in railways, airports, and tunnels to route power and communication cables around structural obstacles, ensuring reliable performance in harsh conditions.
Renewable Energy Projects: Direct cables from solar panels, wind turbines, and geothermal equipment to control panels, adapting to the unique topographical challenges of each site.
Q: How do I determine the correct bend radius for my cables?
A: The bend radius should be at least 6-10 times the outer diameter of the largest cable in the tray, depending on the cable type. Our elbows are available in various radii to meet these requirements; consult our technical guide for specific recommendations.
Q: Can I paint the elbows to match the building aesthetics?
A: Yes, metal elbows can be painted using compatible industrial coatings. Thermoplastic elbows are available in different colors and do not require painting for corrosion resistance.
Q: Are there fire-rated options for use in high-risk areas?
A: Yes, we offer fire-rated elbows with intumescent coatings or fire-resistant materials that meet UL 263 and other fire safety standards for use in critical installations.
Q: Do the elbows come with installation hardware?
A: Standard hardware such as bolts, nuts, and washers are included with each elbow. For specialized environments, such as seismic zones, additional mounting brackets may be recommended.
Q: Can custom angles be manufactured?
A: Absolutely. Our engineering team can design elbows for non-standard angles (e.g., 22.5°, 75°) or complex configurations to meet the unique needs of your project.

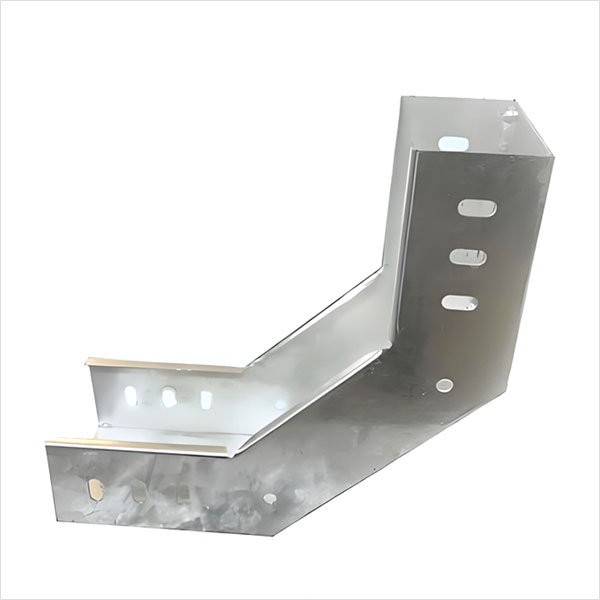

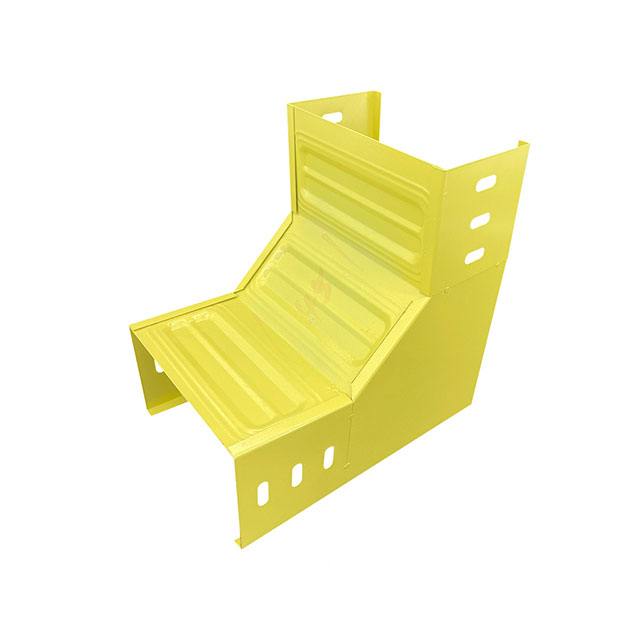

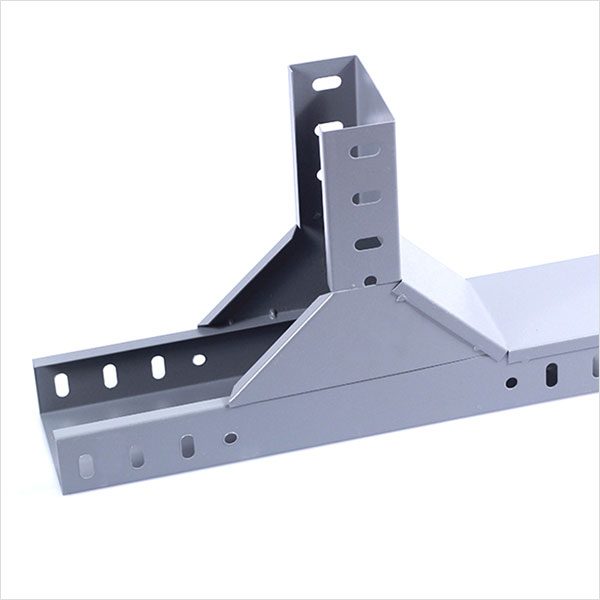

1. Cable wiring at corner positions In the corners of buildings, between floors, or in the corners of computer rooms, cable wiring needs to be adjusted according to the spatial structure. At this point, using tray elbows (such as horizontal elbows, vertical up or down bends) ensures that the cables are laid smoothly along the new direction, avoiding excessive bending of the cables. | 2. Crossing obstacles During the process of cable wiring, when encountering obstacles such as walls, pipes, or other equipment, the tray cannot be laid straight, and tray elbows are needed to turn or bypass the obstacles. For example, vertical elbows can be used to cross obstacles up and down, avoiding conflicts between the cable tray and other systems. |
3. Cable wiring in complex piping systems In industrial plants, computer rooms, chemical piping areas, etc., cable trays need to be flexibly arranged according to the actual situation on site. Tray elbows (such as tees, four-way connections) can easily handle wiring in different directions or changes in the line, ensuring the neat and orderly arrangement of each branch line. | 4. Multi-layer cable tray system In some large-scale engineering projects, it is often necessary to use multi-layer cable trays for wiring. To transition cables between layers of trays, elbows allow cables to smoothly transition from one layer to another, thereby achieving hierarchical management of cables. |

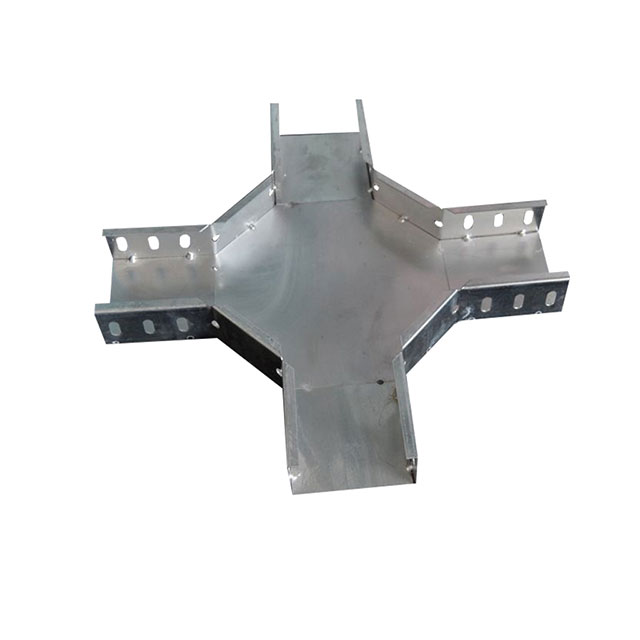

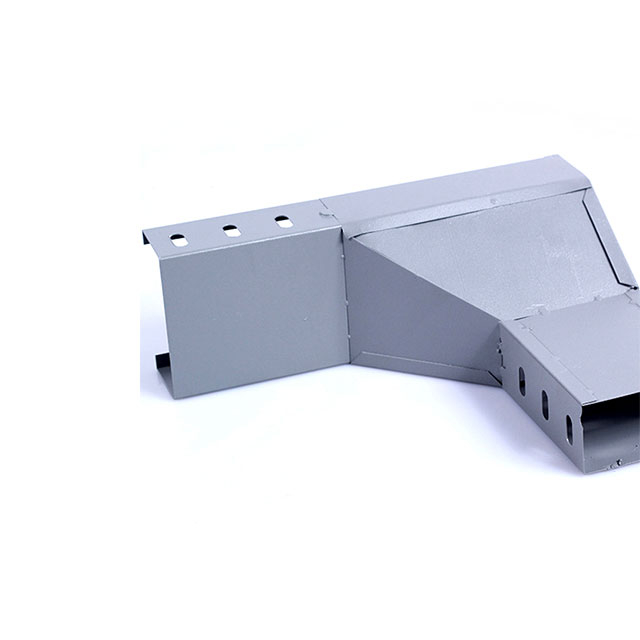

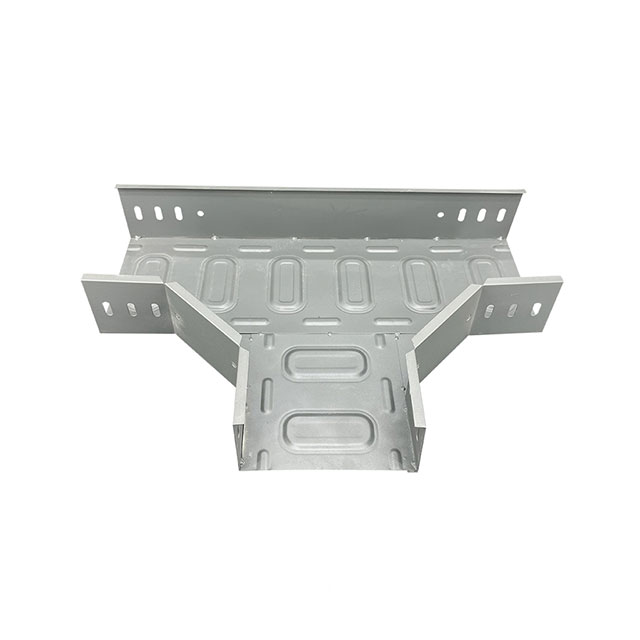

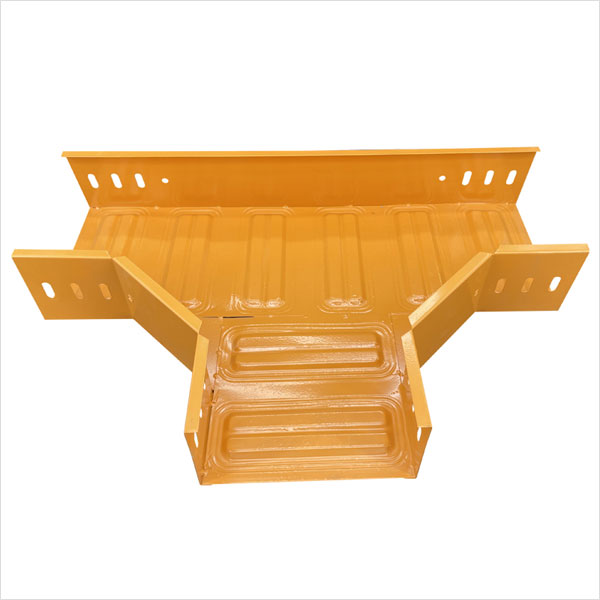

5. Cable protection When cables pass through corners or intersections without using elbows, they may be damaged due to excessive bending or friction. Tray elbows provide a smooth and appropriate turning radius at these positions, protecting the cables from mechanical damage and stress concentration. | 6. Cable branching in building structures Within complex building structures, cables may need to branch out from a main route to supply equipment in different areas. By using tray tees or crosses, cable branching can be effectively achieved, making the cable tray system more flexible and adaptable. |
7. Enhancing aesthetics and tidiness In situations where aesthetics and tidiness are highly valued (such as office buildings, shopping centers, etc.), tray elbows can make the cable routing path clearer and the lines tidier, preventing the random laying of cables from affecting the overall visual effect. |
These application scenarios demonstrate the importance and diversity of tray elbows in cable tray systems, ensuring the safety, flexibility, and aesthetics of the cable system.
