Fireproof Cable Trays for High-Temperature Industrial Environments

Product Description

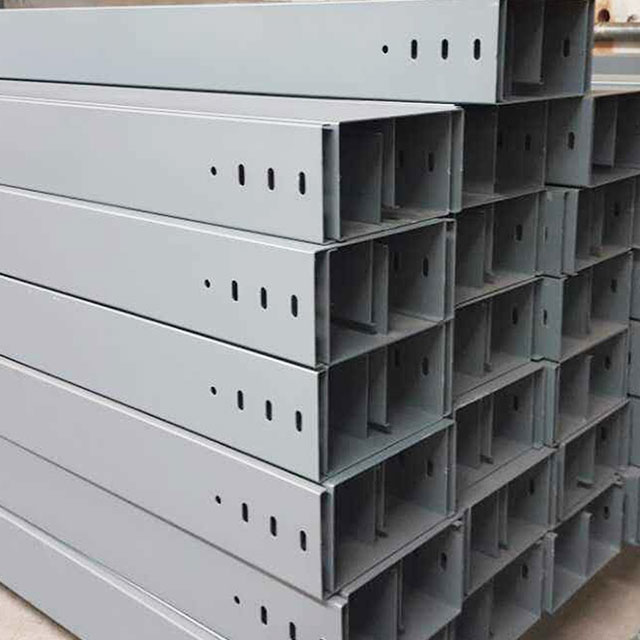

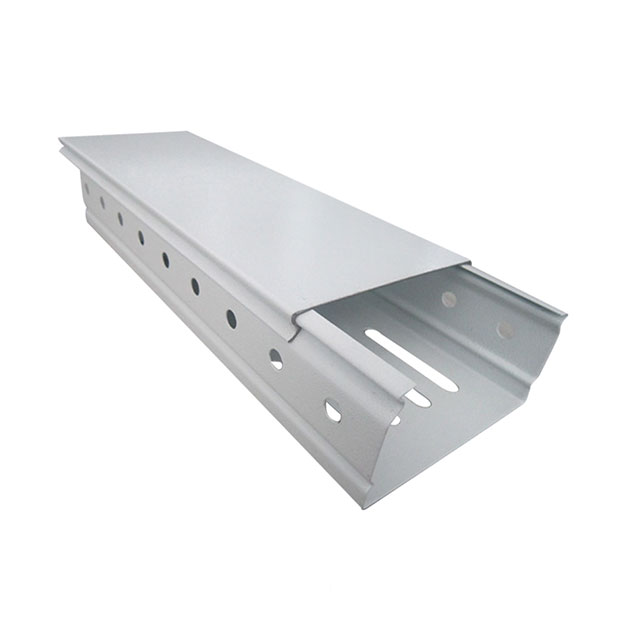

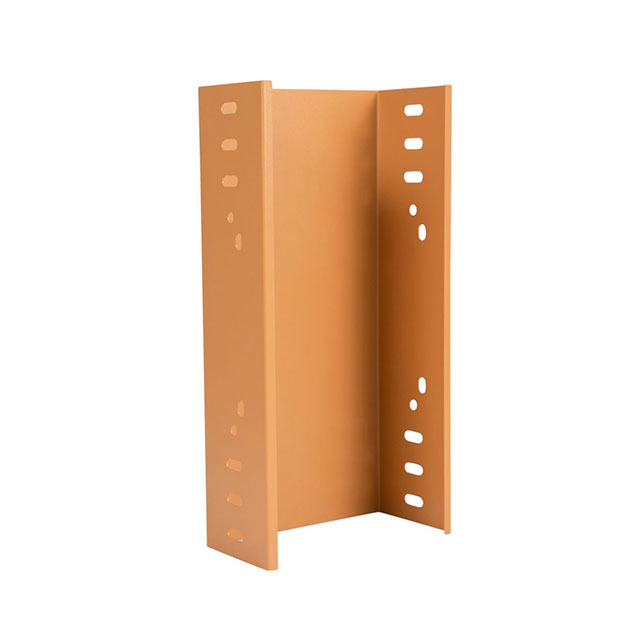

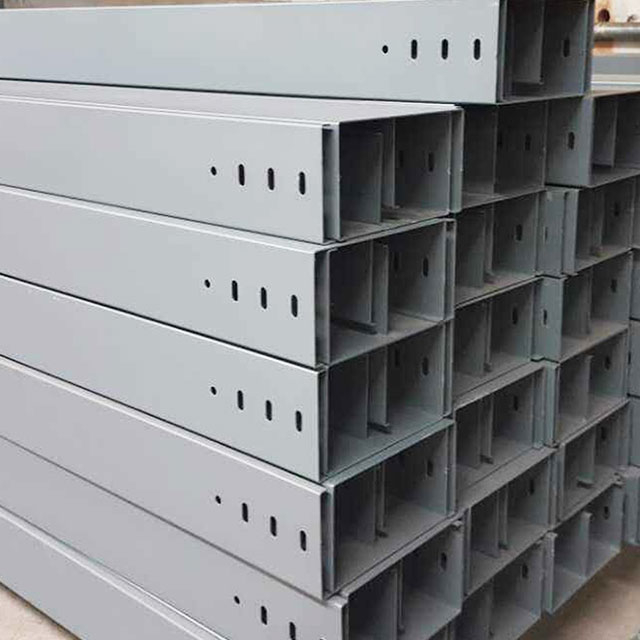

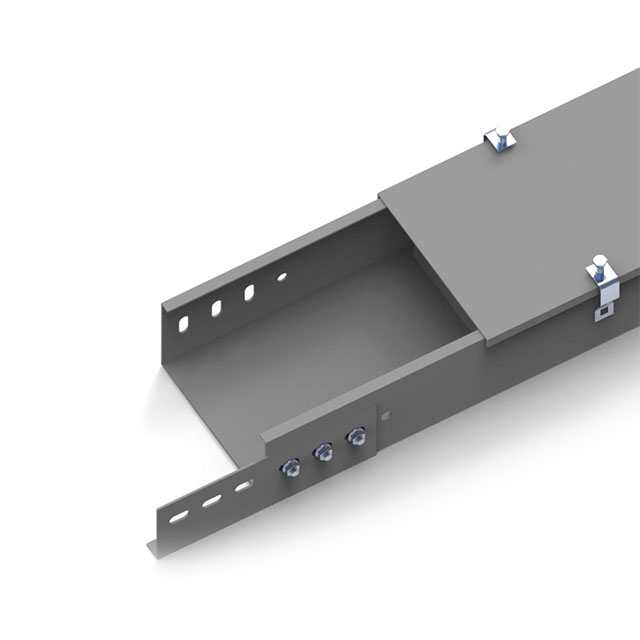

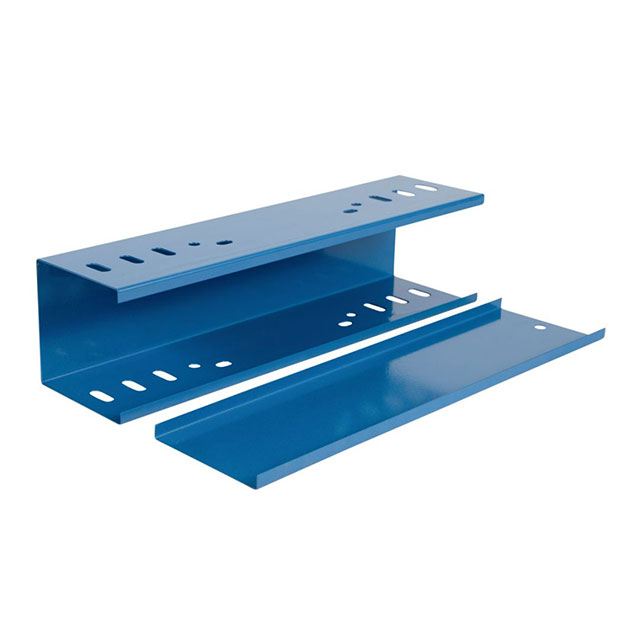

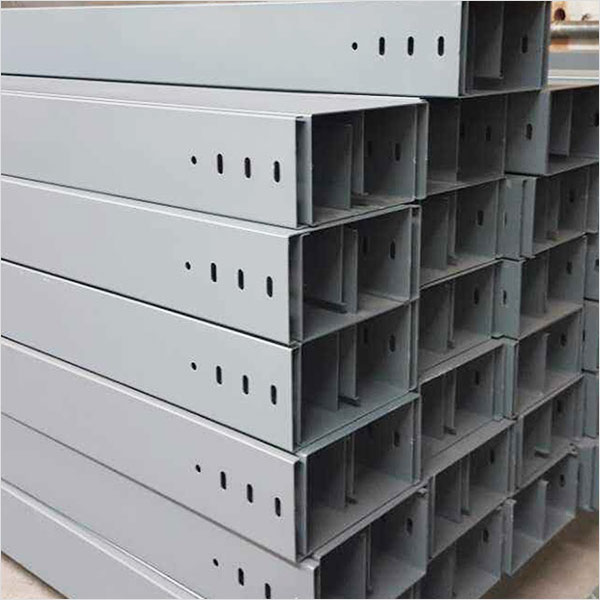

Fireproof Cable Trays are specialized solutions designed to protect cables in extreme high-temperature environments where conventional cable trays would fail. Constructed from a combination of refractory materials such as calcium silicate, ceramic fiber, and galvanized steel frames, these trays create a thermal barrier that insulates cables from heat, flames, and corrosive elements. The multi-layered design includes an inner fire-resistant core, a structural steel framework for mechanical strength, and an outer protective coating for resistance to abrasion and chemical exposure.

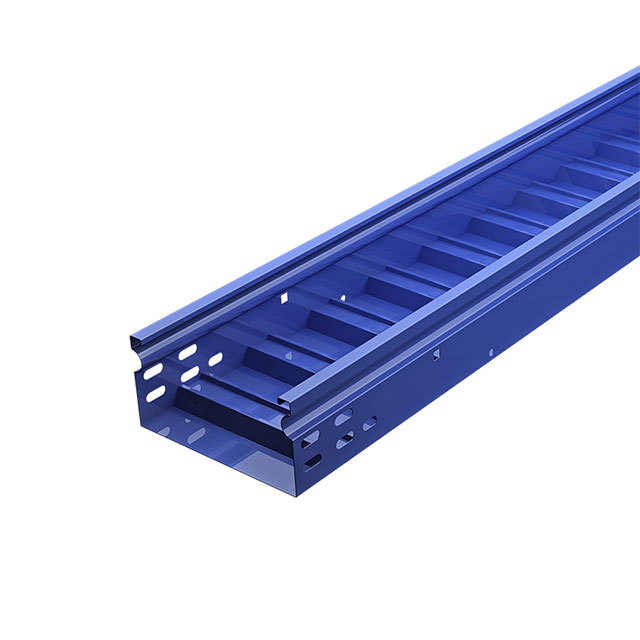

These trays are engineered to maintain their structural integrity and cable-protective properties even at temperatures up to 1200°C, ensuring that critical cables for power, control, and communication systems remain operational during fire incidents or in continuous high-heat environments. Available in various configurations—including ladder-style, solid-bottom, and perforated trays—they can be customized to fit specific cable types and project requirements, providing a reliable solution for industries where fire safety and thermal resistance are non-negotiable.

Features

Exceptional Fire Resistance: Certified to withstand prolonged exposure to high temperatures, with a fire rating of up to 180 minutes (as per UL 1724 and EN 61587 standards), ensuring cables remain functional during fire emergencies.

High-Temperature Stability: Maintains mechanical strength and dimensional stability at temperatures up to 1200°C, preventing deformation that could compromise cable protection.

Composite Material Construction: The combination of refractory ceramics and steel provides a balance of thermal insulation, structural rigidity, and resistance to thermal shock, making them suitable for cyclic temperature environments.

Corrosion and Abrasion Resistance: The outer coating protects against moisture, chemicals, and physical damage, extending the service life in harsh industrial settings.

Modular Design: Easy to install and integrate with existing cable management systems, with compatible fittings and supports that allow for flexible routing around complex industrial layouts.

Application

Fireproof Cable Trays are essential in industries where high temperatures and fire risks are inherent:

Power Generation Plants: Used in thermal power stations, nuclear facilities, and waste-to-energy plants to protect control cables for turbines, boilers, and safety systems from radiant heat and potential fire hazards.

Petrochemical and Refineries: Withstand the extreme temperatures and corrosive gases in oil refineries, chemical plants, and gas processing facilities, ensuring reliable cable routing for critical instrumentation and emergency shutdown systems.

Metallurgical Industries: Ideal for steel mills, foundries, and smelters, where cables are exposed to radiant heat from furnaces and molten metal splashes, requiring continuous protection to prevent system failures.

Tunnel and Underground Infrastructure: Used in road and rail tunnels, where fires can spread rapidly and high temperatures can compromise communication and ventilation cables, impacting emergency response efforts.

Data Centers and Server Rooms: Provide an added layer of fire protection for power and data cables, safeguarding critical IT infrastructure from fire-related downtime and data loss.

FAQ

Q: How much weight can these trays support at high temperatures?

A: The load capacity varies by model, but most fireproof trays maintain 80% of their ambient load capacity at 600°C and 50% at 1000°C. Detailed thermal load charts are available for each product variant.

Q: Are they suitable for use in wet high-temperature environments?

A: Yes, many models feature waterproof seals and corrosion-resistant coatings, making them suitable for steam plants, boiler rooms, and other humid high-heat environments.

Q: Do they require special maintenance?

A: Minimal maintenance is needed, but periodic inspections for coating integrity and structural alignment are recommended, especially in highly corrosive or vibration-prone areas.

Q: Can they be used with non-fireproof cable trays in the same system?

A: Yes, they can be integrated as fire-resistant segments in a larger cable management system, providing targeted protection for critical cable runs in high-risk zones.

Q: What is the typical lifespan of fireproof cable trays?

A: With proper installation and maintenance, they can last 20-30 years in most industrial environments, significantly longer than standard cable trays in high-temperature settings.
