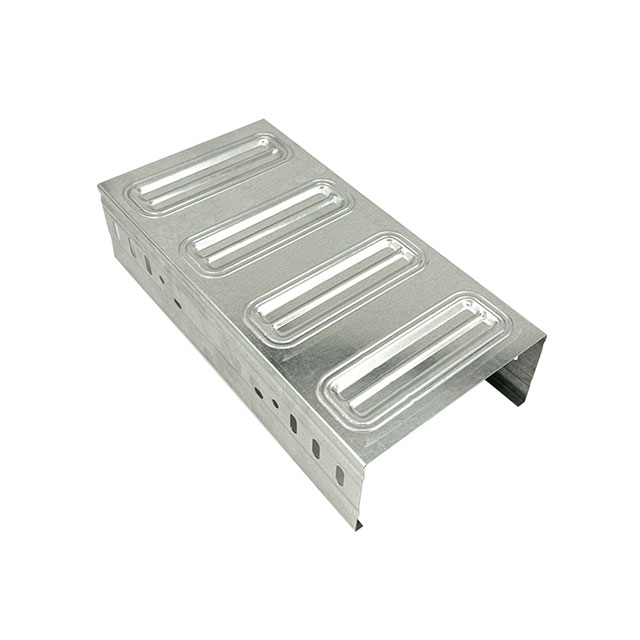

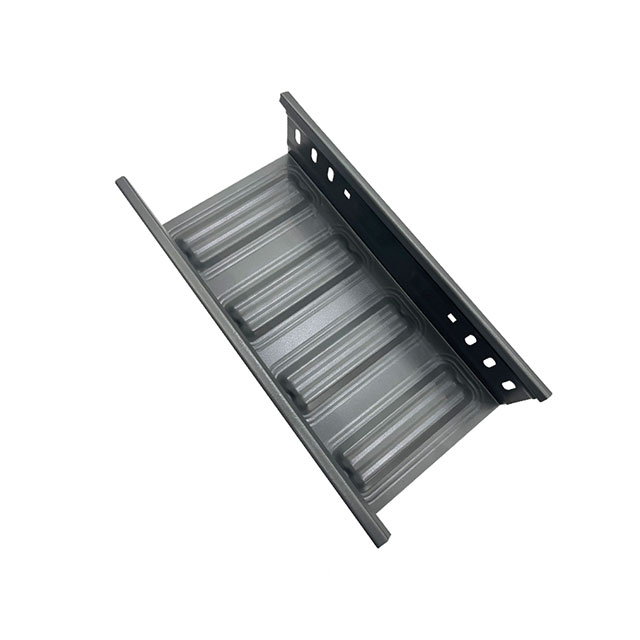

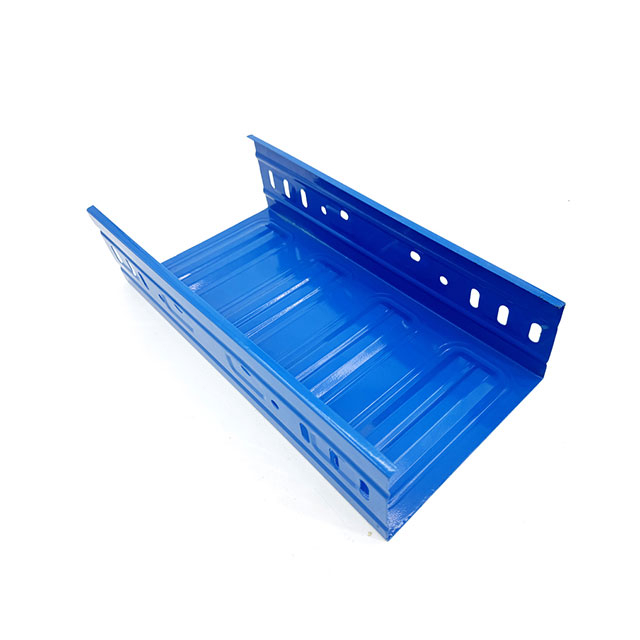

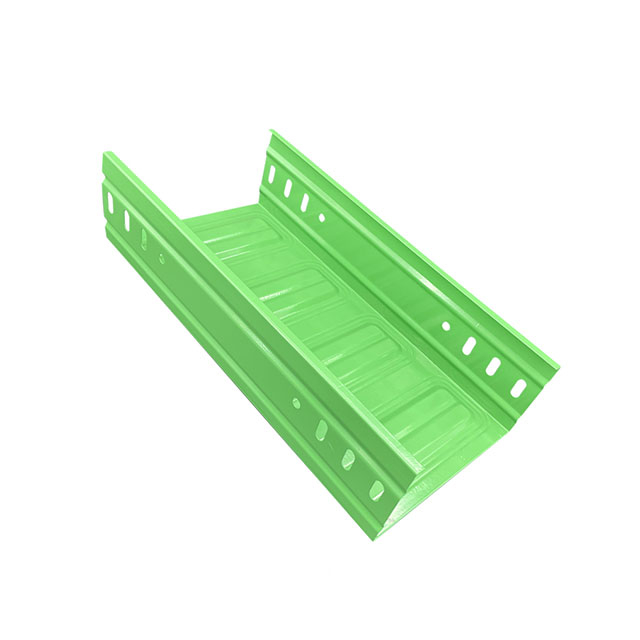

Molded Reinforced Cable Trays are advanced solutions designed to streamline and organize industrial cable management systems. Crafted from a combination of high-quality thermoplastic polymers and reinforced fiberglass, these trays offer a robust framework for supporting and routing various types of cables in demanding industrial environments. The molded design ensures uniform structural integrity, with precision-engineered ribs and cross-sections that enhance load-bearing capacity while minimizing material weight.
These cable trays feature an open-grid configuration, allowing for optimal airflow to prevent overheating of cables, which is crucial in high-power industrial setups. The surface is treated with a corrosion-resistant coating, making them suitable for use in harsh conditions, including those with exposure to moisture, chemicals, or extreme temperatures. Available in various lengths, widths, and depths, they can be easily customized to fit specific project requirements, ensuring seamless integration into existing infrastructure or new installations.
Superior Load-Bearing Capacity: The reinforced fiberglass composite construction provides exceptional strength, capable of supporting heavy-duty cables and maintaining structural stability even under continuous load.
Corrosion Resistance: The specialized coating protects against rust, chemical spills, and moisture, extending the service life in aggressive industrial environments such as manufacturing plants, oil refineries, and wastewater treatment facilities.
Enhanced Cable Cooling: The open-grid design promotes natural convection, reducing the risk of thermal buildup and improving the overall efficiency and longevity of cable systems.
Easy Installation and Adaptability: Lightweight yet durable, these trays can be quickly assembled using standardized fittings, and their modular design allows for easy expansion or modification as cable management needs evolve.
Compliance with Industry Standards: Meet or exceed international safety and performance regulations, including UL 514C for cable trays, ensuring reliability and peace of mind in critical applications.
Molded Reinforced Cable Trays are ideal for a wide range of industrial settings where efficient and secure cable management is essential:
Manufacturing Facilities: Used to organize power, data, and control cables in production lines, minimizing clutter and reducing the risk of downtime due to cable-related issues.
Data Centers: Provide a structured pathway for high-density network cables, supporting the cooling requirements of server rooms and ensuring easy access for maintenance and upgrades.
Oil and Gas Plants: Withstand the harsh conditions of offshore platforms and refineries, protecting cables from saltwater, chemicals, and extreme temperatures.
Mining Operations: Durable enough to handle the dusty, wet, and high-vibration environments of mines, ensuring reliable cable routing for communication and machinery control systems.
Renewable Energy Projects: Used in wind farms and solar installations to manage cables from turbines and panels to control stations, offering a cost-effective and sustainable solution.
Q: Are these cable trays suitable for outdoor applications?
A: Yes, their corrosion-resistant coating and weatherproof construction make them suitable for both indoor and outdoor use, including exposed environments with high humidity or temperature fluctuations.
Q: Can they support fiber optic cables?
A: Absolutely. The open-grid design is gentle on fiber optic cables, and the smooth surface prevents abrasion, making them an excellent choice for mixed cable systems.
Q: What is the maximum load capacity per linear foot?
A: The load capacity varies by model, but standard trays can support between 150-300 pounds per linear foot, depending on the width and reinforcement specifications. Detailed load charts are available in the technical datasheet.
Q: Do you offer custom sizes?
A: Yes, we specialize in customizing cable trays to meet specific project dimensions and load requirements. Please provide your specifications, and our engineering team will assist in designing the optimal solution.
Q: How do they compare to metal cable trays in terms of weight?
A: Molded reinforced cable trays are significantly lighter than metal alternatives, reducing installation time and costs while maintaining comparable strength and durability.
Compression-molded reinforced cable trays are widely used in various fields due to their high strength, durability, and resistance to environmental conditions. The following are their main application scenarios:
1. Industrial production and manufacturing fields Compression-molded reinforced cable trays can carry a large number of cables and wires, ensuring stable transmission of power and signals. In complex industrial environments, such as petrochemical, metallurgy, and mechanical manufacturing, compression-molded reinforced cable trays provide reliable cable management solutions, capable of withstanding high mechanical loads and harsh working conditions. | 2. Construction projects In the cable wiring systems of commercial buildings and high-rise buildings, compression-molded reinforced cable trays, due to their excellent structural strength and corrosion resistance, can adapt to various cable layout needs, ensuring the safety and reliability of the cable system. |
3. Data centers and communication rooms In these places, a large number of data cables and network wires need to be managed in an orderly manner. The high strength and durability of compression-molded reinforced cable trays can effectively organize and protect these important cable systems, ensuring the stability of data transmission. | 4. Power industry In the cable layout of power substations and transmission lines, compression-molded reinforced cable trays, due to their superior mechanical strength and environmental resistance, can withstand long-term work pressures and harsh environmental conditions in power facilities, ensuring the normal operation of the power system. |
5. Large-scale industrial plants, data centers, and other energy-intensive occasions These places can reduce power system loads and energy consumption by optimizing the structure and materials of the trays, effectively saving energy. | 6. Airports, subway stations, large commercial buildings, or bridges, etc., high-load environments Compression-molded reinforced cable trays can reduce installation costs and workloads while maintaining load-bearing capacity. |
7. Chemical plants, coastal areas, sewage treatment plants, etc., high-corrosion environments In these environments, compression-molded reinforced cable trays use corrosion-resistant materials to prevent cable systems from being damaged by corrosion. | 8. Power tunnels, subways, underground projects, etc., where fire resistance and durability are required This type of tray combines fire-resistant materials and high-temperature-resistant materials to ensure structural integrity in fire or high-temperature environments, ensuring the safety and durability of the cable system. |
9. High-rise buildings, long-distance laying, or in large factories and power plants Due to the lightness of the tray, transportation and installation are easy, significantly reducing installation difficulty and time. | 10. Green buildings, environmental protection projects Compression-molded reinforced cable trays meet modern environmental protection requirements, reducing environmental impact, and are suitable for new energy-saving and emission reduction policies in strict occasions. |
