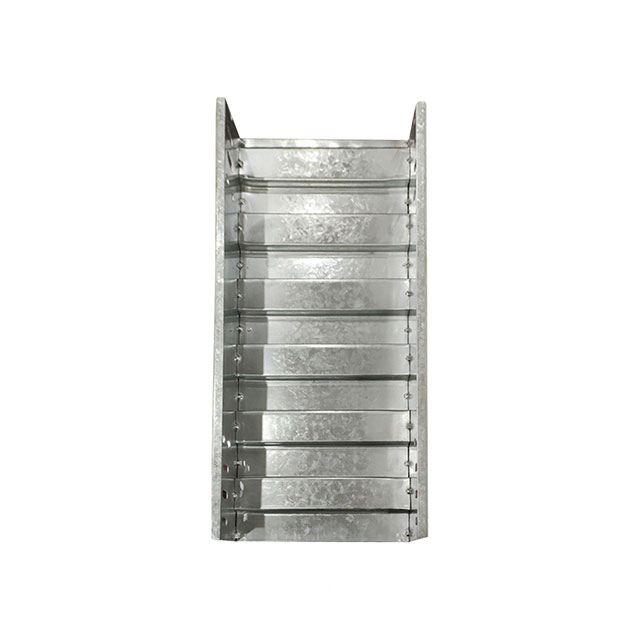

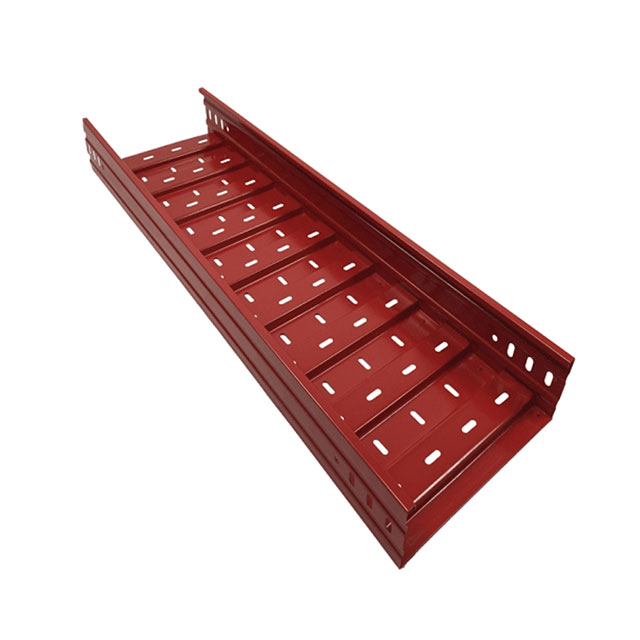

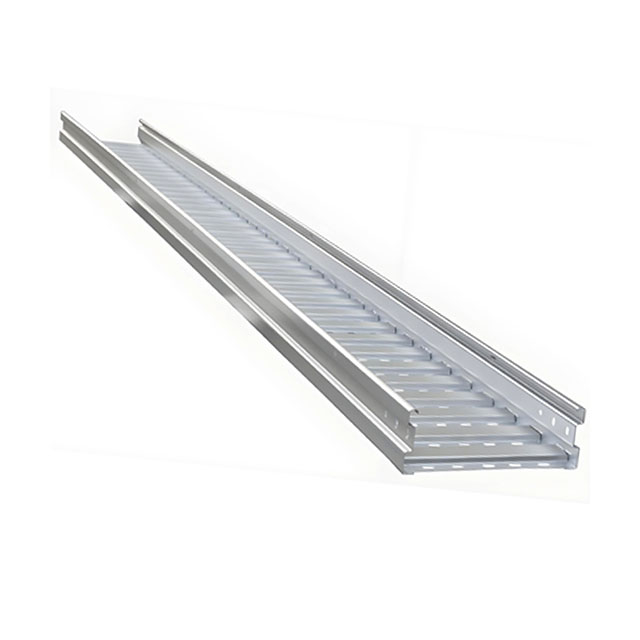

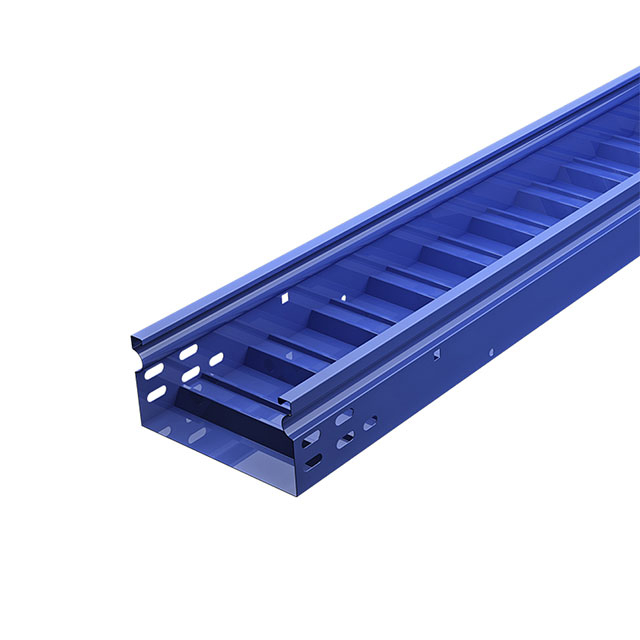

Structure of Corrugated Cable Tray

The corrugated structure of corrugated cable trays not only reduces the weight of the tray but also, through the convective structure of the upper and lower cold and hot air exchange, turns the tray into a heat sink for the cable line system, maximizing the dissipation of heat within the tray and ensuring the safe operation of the cables. In addition, the side and base plates of the corrugated tray are equipped with convective holes, which facilitate heat dissipation and further enhance the effectiveness of the tray.

Material and Surface Treatment of Corrugated Cable Tray

The materials for corrugated cable trays can be selected from galvanized steel plate, color steel plate, or stainless steel plate, and the surface treatments include color steel with spraying, VCI bimetal coating, hot-dip galvanizing, hot-dip galvanizing with spraying, powder spraying, and fire-retardant baking paint, etc.

Applications of Corrugated Cable Tray

Corrugated cable trays are suitable for laying various cables, especially in situations that require high load-bearing capacity and good heat dissipation effects. Its lightweight design reduces installation difficulty, accelerates construction progress, and saves material costs. In addition, corrugated trays are also corrosion-resistant, extending their service life.
