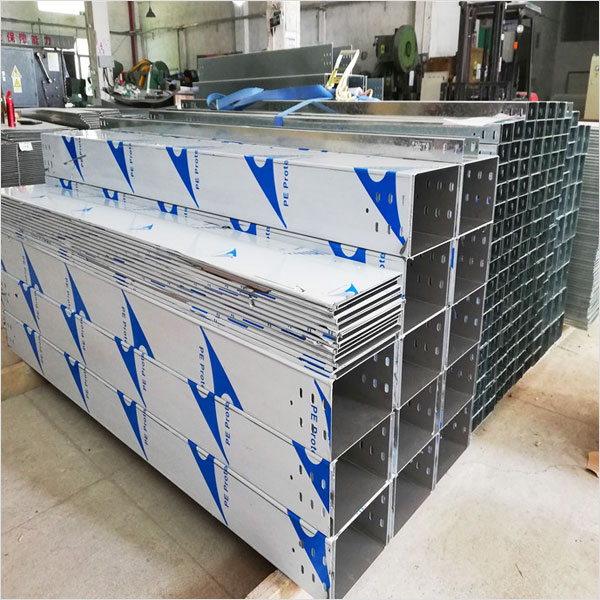

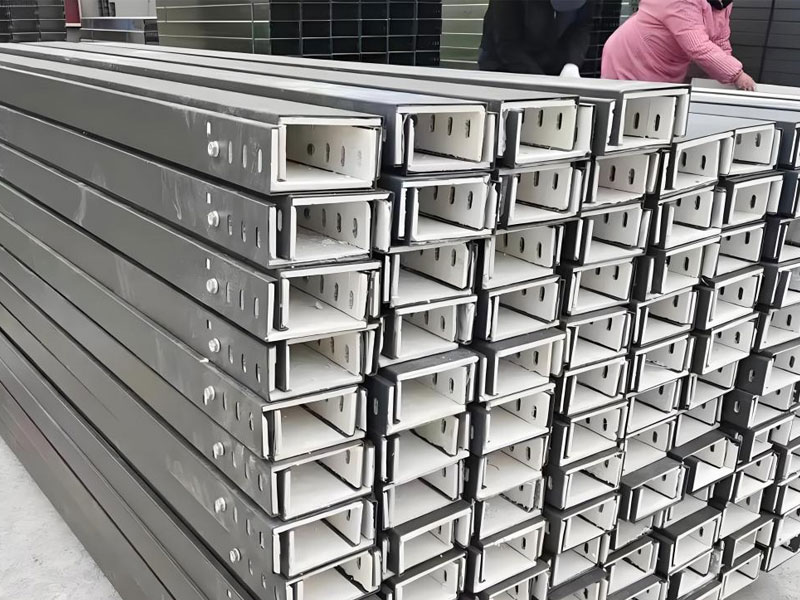

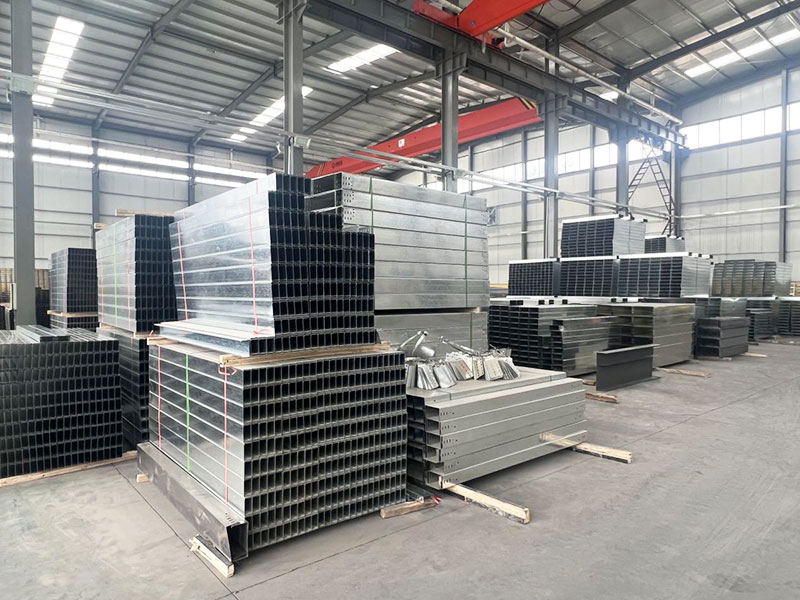

Integral Formed Large-span Cable Tray from China manufacturer - Beijing Tianyuan Rongli Technology Co., Ltd.

You are here: Home / Products / Light Gauge Steel Keel / Integral Formed Large-span Cable Tray

Integrally Formed Large-span Cable Tray Large-span Cable Tray Cable Tray large-span rack integral formed large-span rack integrally formed large-span rack one-piece large-span rack integrated large-span cable tray

Product Category

Parameters

Features

Materials and Structure

Application

Features of Integrally Formed Large-span Cable Tray

High Load Capacity

This one-piece large-span cable tray is constructed from high-strength materials, providing exceptional load-bearing capabilities. It supports extensive cabling systems, ensuring reliable performance and stability in critical installations.

Large Span Design

The large-span design accommodates various wiring requirements across different environments. This feature reduces the number of required cables, optimizing installation costs and improving efficiency in cable management.

User-Friendly Installation

Installation is straightforward and can be tailored to specific project needs. The adaptable design allows for quick setup, minimizing downtime during installation and making it suitable for diverse applications.

Easy Maintenance Access

The thoughtful design facilitates easy maintenance, allowing for quick inspections and repairs. This feature helps extend the lifespan of both the cable tray and the cables, ultimately reducing long-term maintenance expenses.

Aesthetic Integration

With a sleek and minimalist design, this cable tray integrates seamlessly into various environments. Its aesthetic appeal enhances the overall look of installations while maintaining functionality.

Durable Construction

Built to withstand harsh conditions, the tray offers durability that ensures long-term performance. This resilience is essential for industrial settings where reliability and safety are paramount.

Versatile Application

Suitable for a wide range of industries, including telecommunications, power distribution, and building management systems. The tray meets diverse cabling needs, making it a versatile choice for projects.

Efficient Cable Management

The design promotes organized cable routing, reducing clutter and improving accessibility. This efficiency is crucial for troubleshooting and expanding network systems.

Cost-Effective Solution

By minimizing material use and installation time, the cable tray serves as a cost-effective solution for large-scale wiring projects. Its efficient design contributes to overall project savings.

Robust Safety Features

Engineered with safety in mind, the tray minimizes risks associated with cable damage or disconnection. This focus on safety enhances the protection of electrical systems in demanding environments.

Materials and Structure of One-piece Large-span Rack

The one-piece large-span rack can be divided into steel racks, aluminum alloy racks, and fiberglass racks according to different materials.

- Steel racks are widely used in various places due to their strong load-bearing capacity and good durability.

- Aluminum alloy racks are light, aesthetically pleasing, and corrosion-resistant; fiberglass racks have excellent corrosion resistance and are suitable for use in damp and corrosive environments.

The main applications of integrated large-span cable trays include the following aspects:

1. Industrial plants

In manufacturing, petrochemical plants, metallurgical plants, power plants, and other industrial environments, large-span cable trays are used to support and secure high-voltage cables and communication wires, ensuring safety and neatness.

2. Commercial buildings

In shopping malls, office buildings, residential communities, and other commercial buildings, large-span cable trays are used for electrical and data wiring, facilitating maintenance and expansion.

3. Infrastructure

In transportation facilities such as airports, railways, and subways, large-span cable trays are used for the management of power supply and communication lines. Additionally, in infrastructure such as water treatment plants and sewage treatment plants, the trays are used to carry cables for electrical and automation control systems.

4. Telecommunications industry

In telecommunications rooms, data centers, and other telecommunications industries, large-span cable trays are used for the layout of network cables and optical fibers, supporting efficient data transmission and communication.

5. Special environments

In chemical plants, pharmaceutical plants, food processing plants, and other settings with high hygiene and explosion-proof requirements, trays made of specific materials and designs are used.

6. Outdoor applications

In outdoor environments such as wind farms and solar power stations, large-span cable trays are used to connect power generation equipment and the power grid, adapting to various weather conditions.

7. Medical facilities

In hospitals, laboratories, and other medical facilities, large-span cable trays are used to support the wiring of medical and communication equipment, maintaining a clean and safe environment.
