Insulated Copper Conductor Cable 10X1.5mm Screened Shielded PVC Price

You are here: Home / Products / Cable / Power Cables / Insulated Copper Conductor Cable 10X1.5mm Screened Shielded PVC Price

Customization:	Available
Color:	Customizable
Material Shape:	Round Wire

Product Category

Product Description

Basic Info.

Model NO.

Control cable

Wire Core Material

Red Copper Wire

Certification

RoHS, CE, ISO9001, CCS, VDE

Usage

Industrial / Controlling / Equipment

Jacket

PVC / LSZH

Place of Origin

Tianjin, China

Size

0.5mm2 - 25mm2

Standard

IEC 60332-3-24

Model Number

Kvv / Ysly

MOQ

1000 Meters

Brand Name

Tianyuan

Insulation Material

PVC / LSZH

Insulation Color

Customer′s Requirement

Product Name

PVC Insulated Mechanical Multicore Control Cables

Rated Voltage

0.6/1kv

Conductor Material

Copper

Conductor

99.99% Pure Copper

Trademark

Tianyuan

Origin

China

Product Description

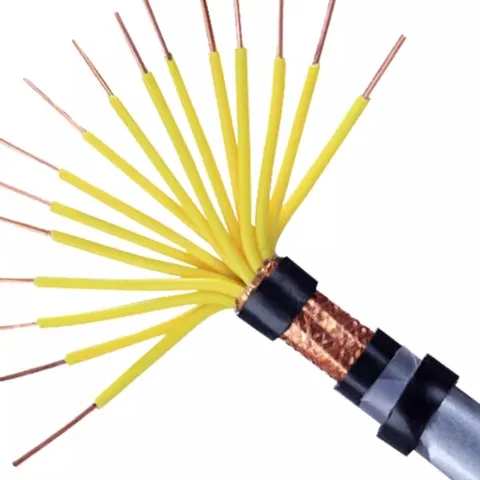

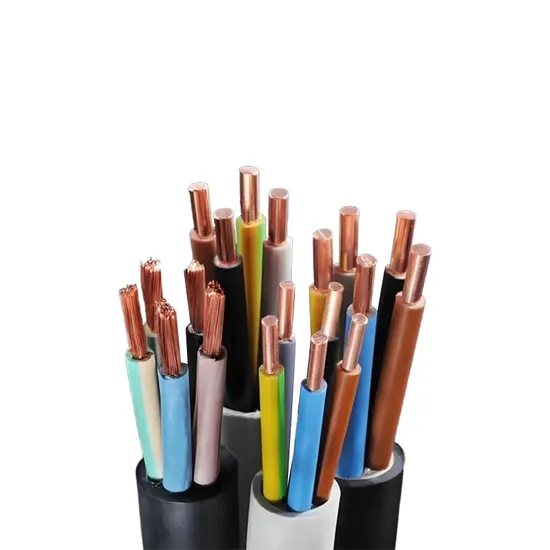

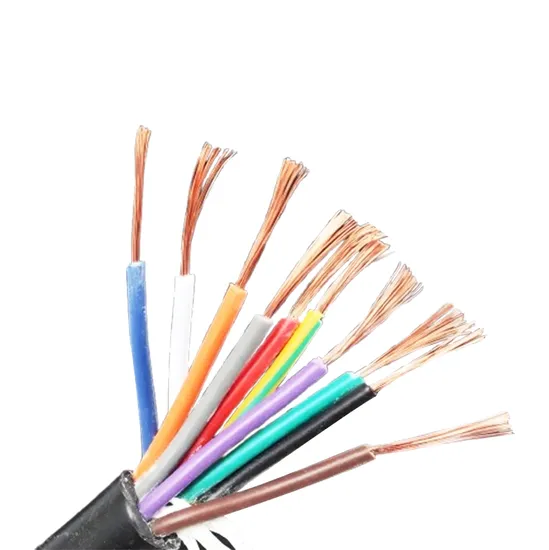

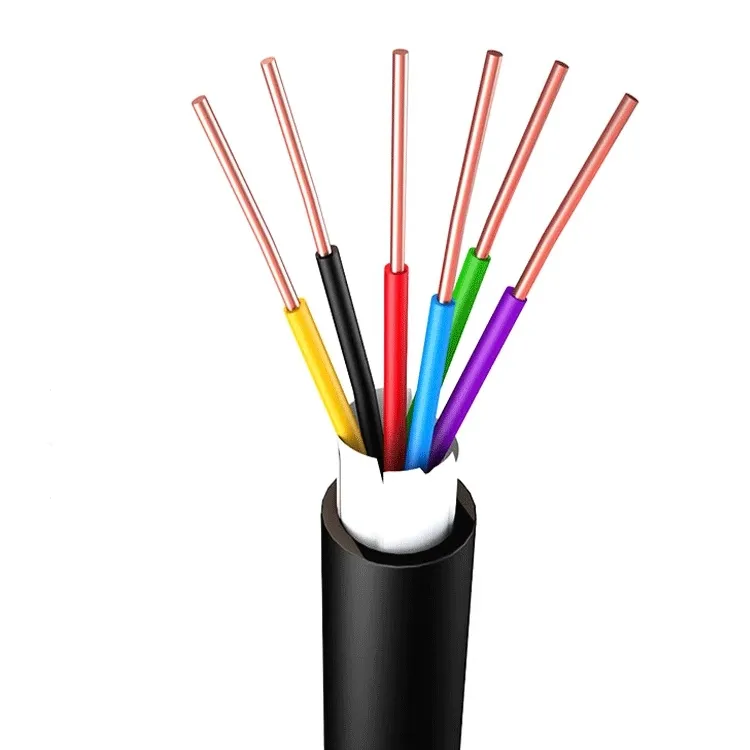

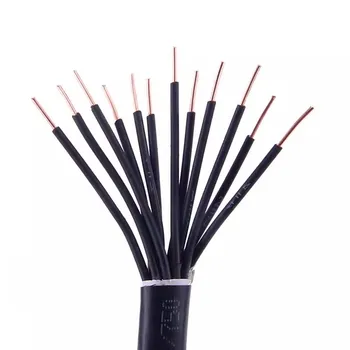

Introducing the versatile and reliable 10x1.5mm and 12x1.5mm Screened Shielded PVC Insulated Multicore Control Cables. These cables are expertly crafted for internal connectivity within controllers, motor starters, and rectifier equipment. Perfectly suited for seamless installation in switch control, metering, relay, and sophisticated instrumentation panels, these cables offer unmatched performance across diverse sectors. Ideal for applications in automation, process control, and the building and construction industries, they also excel in marine and defense environments as well as in transmission, distribution, and power networks. Discover the efficiency and durability of cables tailored to meet the demands of modern industrial and commercial needs.
Insulated Copper Conductor Cable 10X1.5mm Screened Shielded PVC Price

Insulated Copper Conductor Cable 10X1.5mm Screened Shielded PVC Price

serial number	Type number gauge (mm²)	Approximate outer diameter of cable (mm)	Approximate cable weight (kg/km)
1-2	KVV 450/750V 2×0.75	7.2	58.7
2-2	KVV 450/750V 2×1	7.5	66.0
3-2	KVV 450/750V 2×1.5	8.4	84.6
4-2	KVV 450/750V 2×2.5	9.6	115.3
5-2	KVV 450/750V 2×4	10.5	151.1
6-3	KVV 450/750V 3×0.75	7.5	69.6
7-3	KVV 450/750V 3×1	7.9	79.3
8-3	KVV 450/750V 3×1.5	8.8	103.3
9-3	KVI 450/750V 3×2.5	10.1	152.2
10-3	KVV 450/750V 3×4	11.1	203.7
11-4	KVV 450/750V 4×0.75	8.1	84.7
12-4	KVV 450/750V 4×1	8.5	97.3
13-4	KVV 450/750V 4×1.5	9.6	128.5
14-4	KVV 450/750V 4×2.5	11.0	189.7
15-4	KVV 450/750V 4×4	12.1	256.7
16-5	KVV 450/750V 5×0.75	8.7	100.4
17-5	KVV 450/750V 5×1	9.1	116.1
18-5	KVV 450/750V 5×1.5	10.4	154.5
19-5	KVV 450/750V 5×2.5	12.0	220.4
20-5	KVV 450/750V 5×4	13.8	330.5
21-7	KVV 450/750V 7×0.75	9.4	125.0
22-7	KVV 450/750V 7×1	9.9	146.0
23-7	KVV 450/750V 7×1.5	11.2	196.8
24-7	KVV 450/750V 7×2.5	13.6	303.4
25-7	KVV 450/750V 7×4	15.0	414.6
26-8	KVV 450/750V 8×0.75	10.4	143.8
27-8	KVV 450/750V 8×1	10.9	168.0
28-8	KVV 450/750V 8×1.5	12.5	227.0
29-8	KVV 450/750V 8×2.5	15.1	349.8
30-8	KVV 450/750V 8×4	16.7	478.2
31-10	KVV 450/750V 10×0.75	11.6	173.8
32-10	KVV 450/750V 10×1	12.2	204.0
33-10	KVV 450/750V 10×1.5	14.7	297.2
34-10	KVV 450/750V 10×2.5	17.0	427.0
35-10	KVV 450/750V 10×4	18.9	586.7
36-12	KVV 450/750V 12×0.75	12.0	195.9
37-12	KVV 450/750V 12×1	12.6	231.0
38-12	KVV 450/750V 12×1.5	15.1	336.5
39-12	KVV 450/750V 12×2.5	17.6	487.5
40-12	KVV 450/750V 12×4	19.9	693.5
41-14	KVV 450/750V 14×0.75	12.6	222.0
42-14	KVV 450/750V 14×1	13.8	281.8
43-14	KVV 450/750V 14×1.5	15.8	382.5
44-14	KVV 450/750V 14×2.5	18.4	557.2
45-14	KVV 450/750V 14×4	20.9	794.4
46-16	KVV 450/750V 16×0.75	13.8	268.0
47-16	KVV 450/750V 16×1	14.5	315.4
48-16	KVV 450/750V 16×1.5	16.7	429.8
49-16	KVV 450/750V 16×2.5	19.8	647.1
50-16	KVV 450/750V 16×4	22.0	897.5
51-19	KVV 450/750V 19×0.75	14.5	304.8
52-19	KVV 450/750V 19×1	15.3	360.1
53-19	KVV 450/750V 19×1.5	17.5	493.3
54-19	KVV 450/750V 19×2.5	20.9	744.9
55-19	KVV 450/750V 19×4	23.2	1038.9
56-24	KVV 450/750V 24×0.75	16.7	379.2
57-24	KVV 450/750V 24×1	17.6	449.2
58-24	KVV 450/750V 24×1.5	20.8	636.9
59-24	KVV 450/750V 24×2.5	24.3	934.4
60-24	KVV 450/750V 24×4	27.1	1306.5

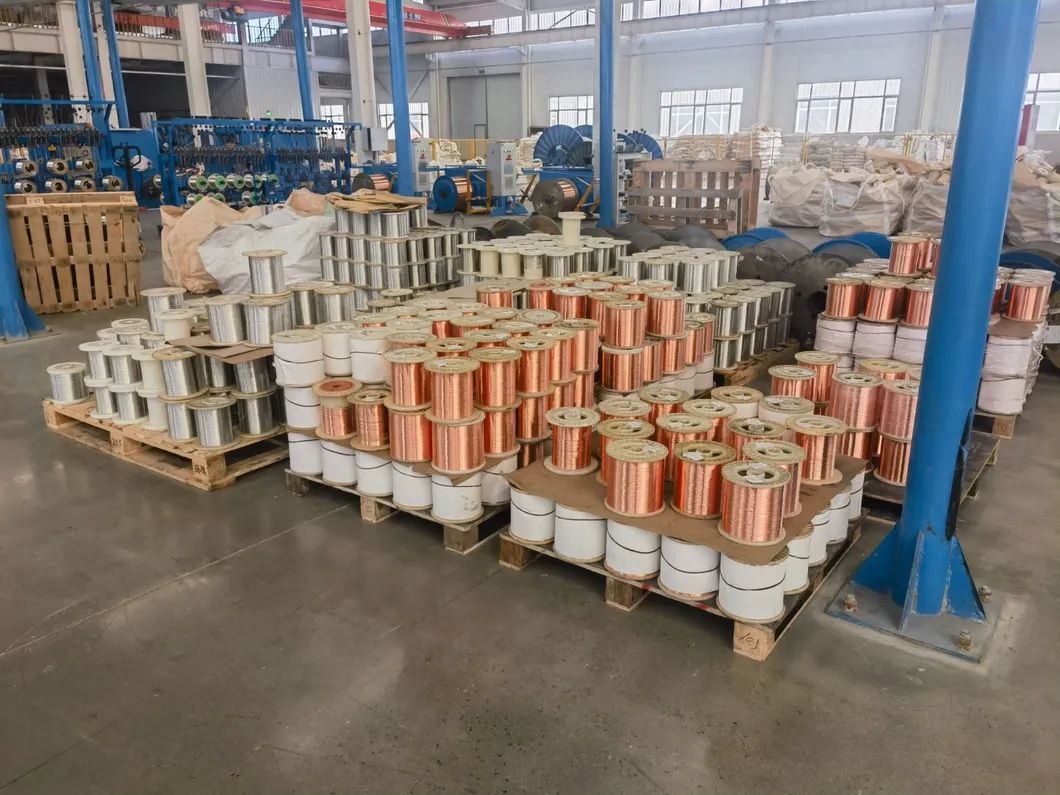

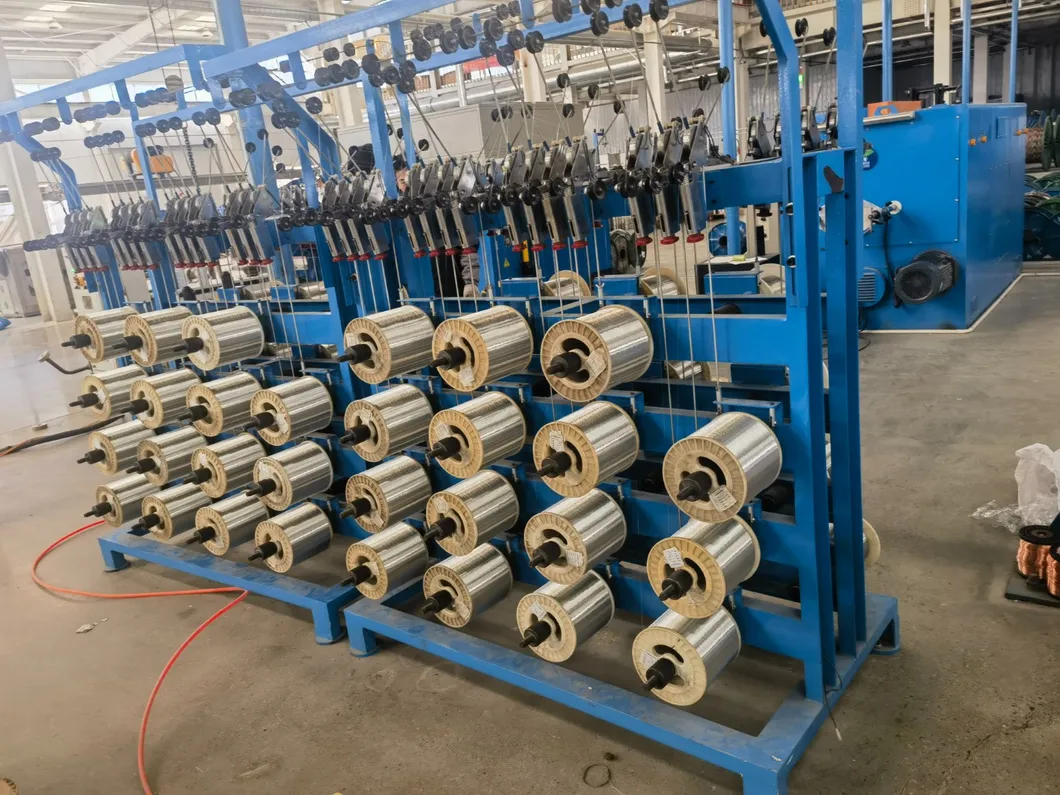

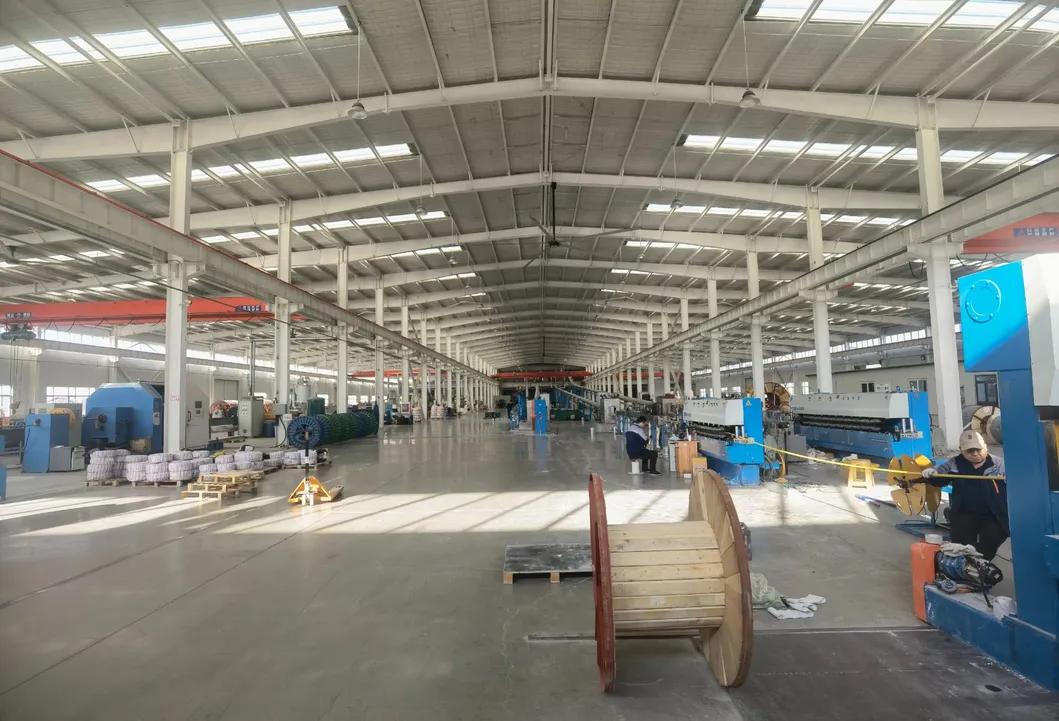

Beijing Tianyuan Rongli Technology Co., Ltd. has established factories in Hebei, Tianjin, and other regions. Since 2023, the company has set up a specialized international trade division. Currently, we serve clients worldwide across more than ten industries, including coal mining, subway systems, telecommunications, and many others, showcasing our diverse and comprehensive capabilities.

Q: Do you offer free samples?
A: Yes, the sample is free and the express charge would be collected on your side.

Q: How about your delivery time?
A: Generally, it takes 2-3 weeks after receiving the advance payment.

Q: What is your payment terms?
A: T/T 50% as deposit, Balance 50% paid before leaving the factory.

Q: What is the shipping port?
A: We ship the goods via Tianjin Port.

Q: What are your main products?
A: Power cable, control cable, communication cable, etc.

Q: Can you produce according to customers' design?
A: Yes, we are a professional manufacturer. OEM and ODM are both welcome.

Q: How do you guarantee the quality of your products?
A: Each step is strictly controlled by the QC team to ensure all our products turn out great.
