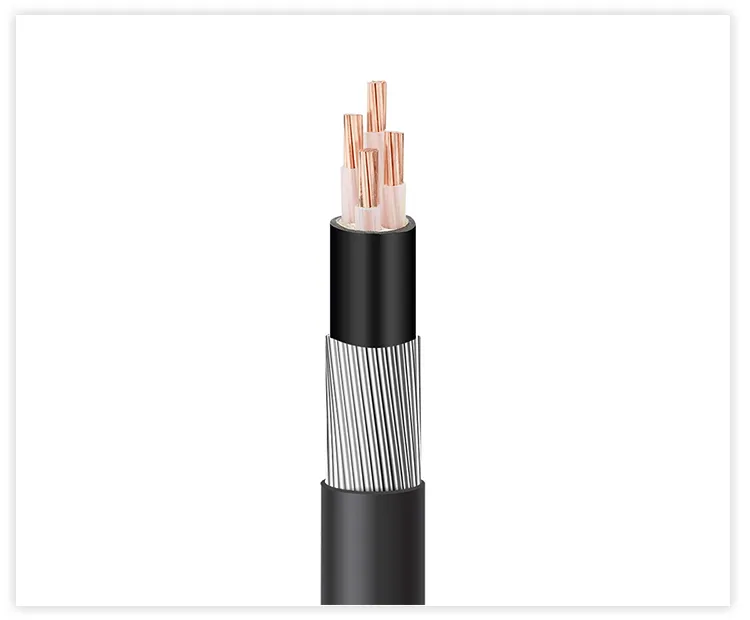

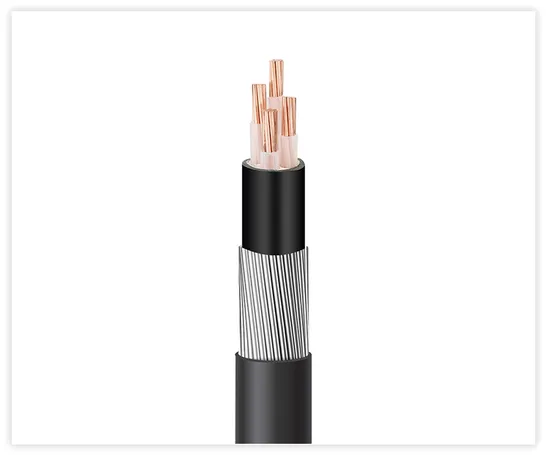

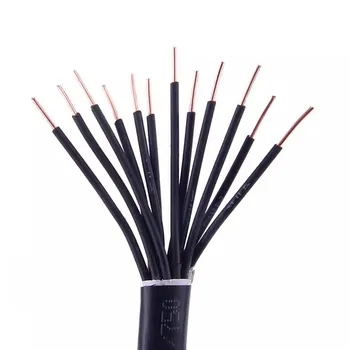

Safety-Certified Flameproof Control Cable for Coal Mines

You are here: Home / Products / Cable / Control and Signal Cables / Safety-Certified Flameproof Control Cable for Coal Mines

Customization:	Available
Material Shape:	Round Wire
Wire Core Material:	Red Copper Wire

Product Category

Product Description

Basic Info.

Certification

RoHS, CE, ISO9001, CCC, CCS, VDE

Usage

Industrial / Controlling / Equipment

Jacket

PVC / LSZH

Place of Origin

Tianjin, China

Size

0.5mm2 - 25mm2

Standard

IEC 60332-3-24

Model Number

Kvv / Ysly

MOQ

1000 Meters

Brand Name

Tianyuan

Insulation Material

PVC / LSZH

Insulation Color

Customer′s Requirement

Product Name

PVC Insulated Mechanical Multicore Control Cables

Rated Voltage

0.6/1kv

Conductor Material

Copper

Conductor

99.99% Pure Copper

Trademark

Tianyuan

Origin

China

Product Description

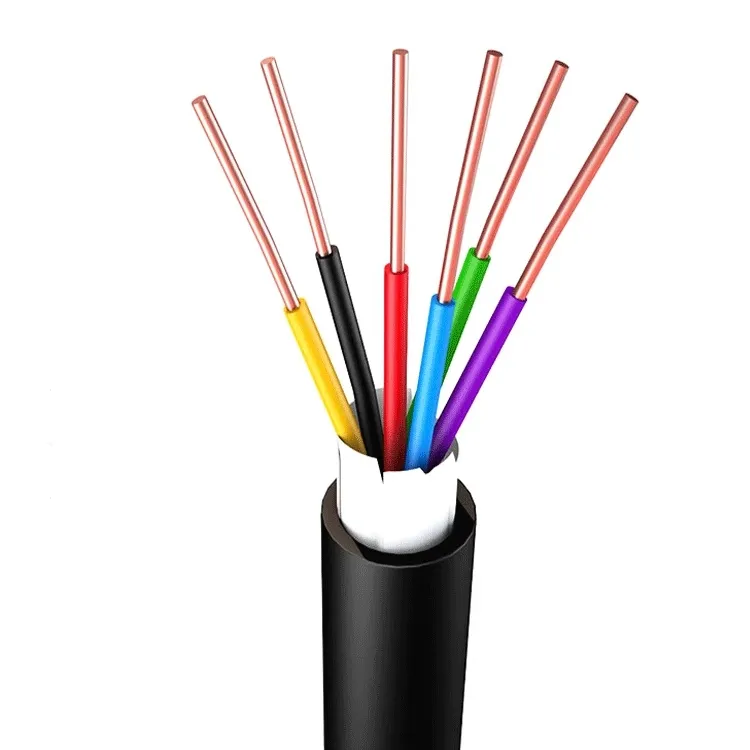

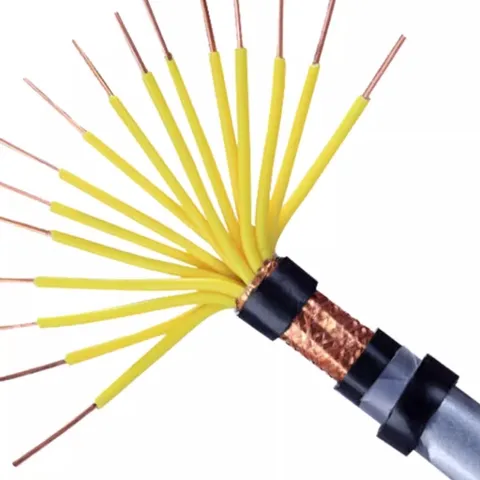

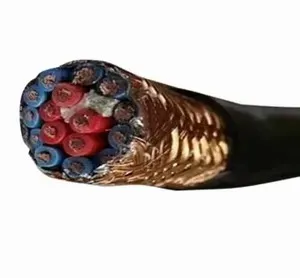

Introducing our high-quality Screened Shielded PVC Insulated Multicore Control Cables, designed for superior performance in diverse industrial and commercial applications. These cables are ideal for internal connectivity in controllers, motor starters, rectifier equipment, and more.
Engineered for seamless integration in switch control systems, metering panels, relay panels, and instrumentation setups, they ensure reliable and efficient operation. Their robust construction and versatile design make them a perfect choice for automation, process control, building and construction, as well as specialized environments such as marine, defense, and power transmission and distribution networks.
Choose our control cables for unmatched durability, efficiency, and adaptability to meet the demanding needs of modern industries.
Safety-Certified Flameproof Control Cable for Coal Mines

Safety-Certified Flameproof Control Cable for Coal Mines

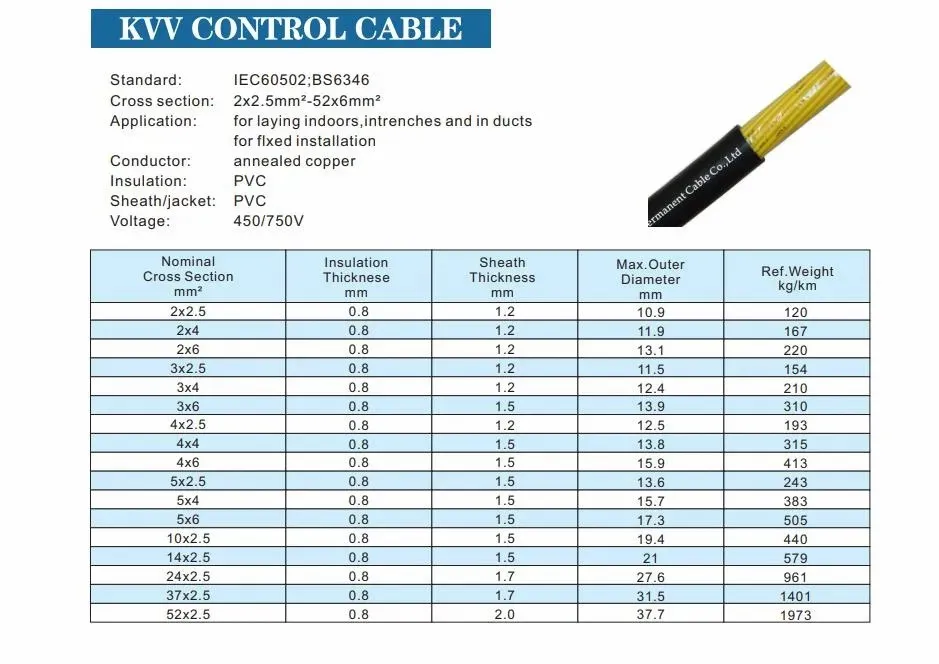

serial number	Type number gauge (mm²)	Approximate outer diameter of cable (mm)	Approximate cable weight (kg/km)
1-2	KVV 450/750V 2×0.75	7.2	58.7
2-2	KVV 450/750V 2×1	7.5	66.0
3-2	KVV 450/750V 2×1.5	8.4	84.6
4-2	KVV 450/750V 2×2.5	9.6	115.3
5-2	KVV 450/750V 2×4	10.5	151.1
6-3	KVV 450/750V 3×0.75	7.5	69.6
7-3	KVV 450/750V 3×1	7.9	79.3
8-3	KVV 450/750V 3×1.5	8.8	103.3
9-3	KVI 450/750V 3×2.5	10.1	152.2
10-3	KVV 450/750V 3×4	11.1	203.7
11-4	KVV 450/750V 4×0.75	8.1	84.7
12-4	KVV 450/750V 4×1	8.5	97.3
13-4	KVV 450/750V 4×1.5	9.6	128.5
14-4	KVV 450/750V 4×2.5	11.0	189.7
15-4	KVV 450/750V 4×4	12.1	256.7
16-5	KVV 450/750V 5×0.75	8.7	100.4
17-5	KVV 450/750V 5×1	9.1	116.1
18-5	KVV 450/750V 5×1.5	10.4	154.5
19-5	KVV 450/750V 5×2.5	12.0	220.4
20-5	KVV 450/750V 5×4	13.8	330.5
21-7	KVV 450/750V 7×0.75	9.4	125.0
22-7	KVV 450/750V 7×1	9.9	146.0
23-7	KVV 450/750V 7×1.5	11.2	196.8
24-7	KVV 450/750V 7×2.5	13.6	303.4
25-7	KVV 450/750V 7×4	15.0	414.6
26-8	KVV 450/750V 8×0.75	10.4	143.8
27-8	KVV 450/750V 8×1	10.9	168.0
28-8	KVV 450/750V 8×1.5	12.5	227.0
29-8	KVV 450/750V 8×2.5	15.1	349.8
30-8	KVV 450/750V 8×4	16.7	478.2
31-10	KVV 450/750V 10×0.75	11.6	173.8
32-10	KVV 450/750V 10×1	12.2	204.0
33-10	KVV 450/750V 10×1.5	14.7	297.2
34-10	KVV 450/750V 10×2.5	17.0	427.0
35-10	KVV 450/750V 10×4	18.9	586.7
36-12	KVV 450/750V 12×0.75	12.0	195.9
37-12	KVV 450/750V 12×1	12.6	231.0
38-12	KVV 450/750V 12×1.5	15.1	336.5
39-12	KVV 450/750V 12×2.5	17.6	487.5
40-12	KVV 450/750V 12×4	19.9	693.5
41-14	KVV 450/750V 14×0.75	12.6	222.0
42-14	KVV 450/750V 14×1	13.8	281.8
43-14	KVV 450/750V 14×1.5	15.8	382.5
44-14	KVV 450/750V 14×2.5	18.4	557.2
45-14	KVV 450/750V 14×4	20.9	794.4
46-16	KVV 450/750V 16×0.75	13.8	268.0
47-16	KVV 450/750V 16×1	14.5	315.4
48-16	KVV 450/750V 16×1.5	16.7	429.8
49-16	KVV 450/750V 16×2.5	19.8	647.1
50-16	KVV 450/750V 16×4	22.0	897.5
51-19	KVV 450/750V 19×0.75	14.5	304.8
52-19	KVV 450/750V 19×1	15.3	360.1
53-19	KVV 450/750V 19×1.5	17.5	493.3
54-19	KVV 450/750V 19×2.5	20.9	744.9
55-19	KVV 450/750V 19×4	23.2	1038.9
56-24	KVV 450/750V 24×0.75	16.7	379.2
57-24	KVV 450/750V 24×1	17.6	449.2
58-24	KVV 450/750V 24×1.5	20.8	636.9
59-24	KVV 450/750V 24×2.5	24.3	934.4
60-24	KVV 450/750V 24×4	27.1	1306.5

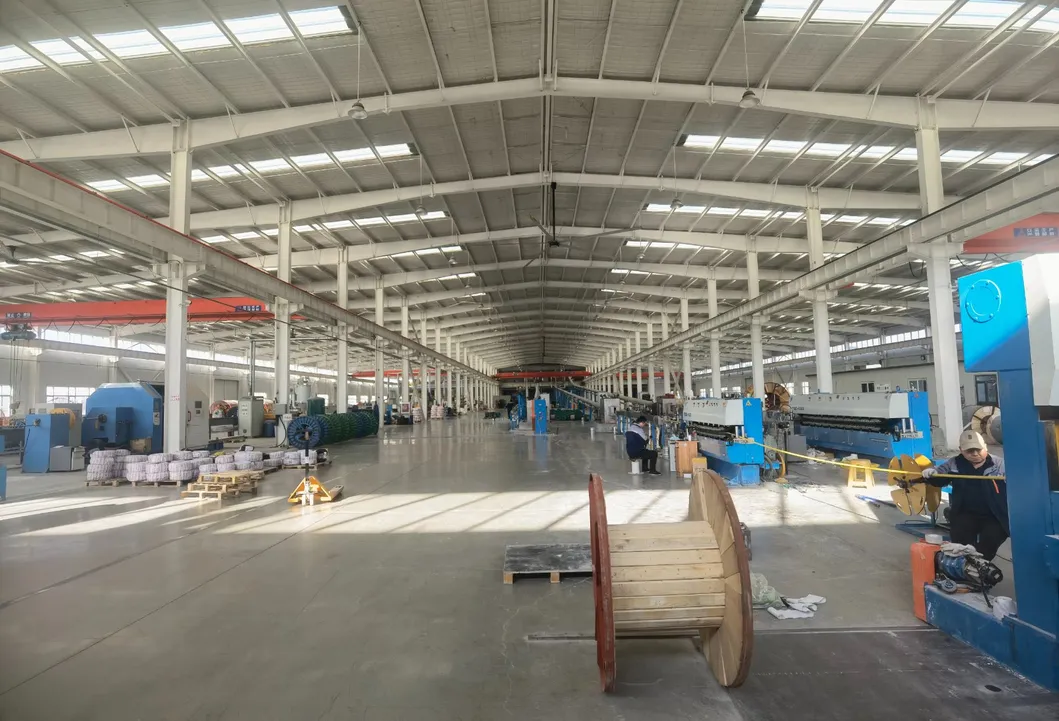

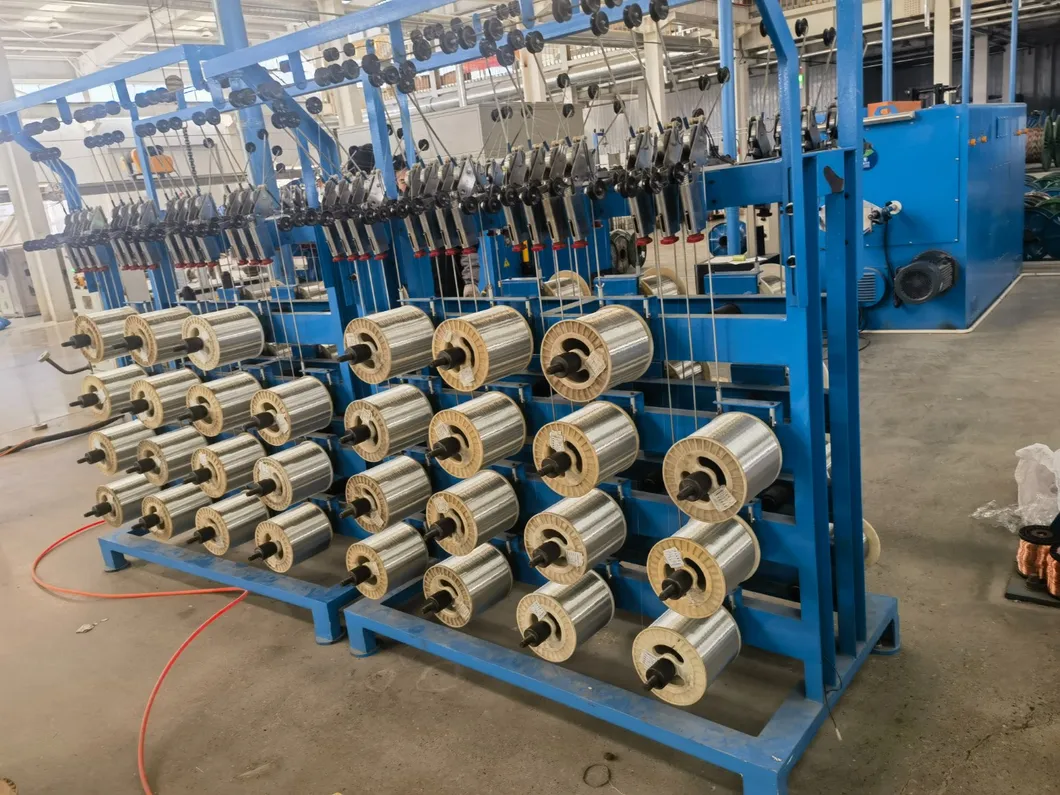

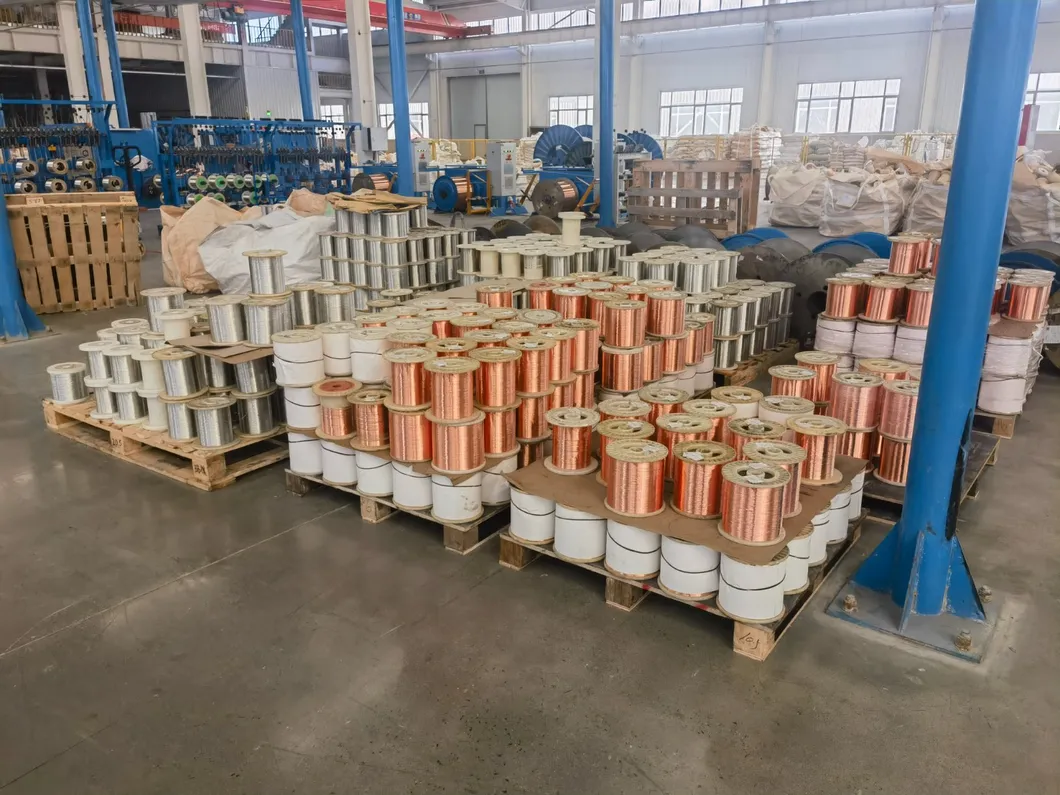

Beijing Tianyuan Rongli Technology Co., Ltd. has established factories in Hebei, Tianjin, and other regions. Since 2023, the company has set up a specialized international trade division. Currently, we serve clients worldwide across more than ten industries, including coal mining, subway systems, telecommunications, and many others, showcasing our diverse and comprehensive capabilities.

Q: Do you offer free samples?
A: Yes, the sample is free and the express charge would be collected on your side.

Q: How about your delivery time?
A: Generally, it takes 2-3 weeks after receiving the advance payment.

Q: What is your payment terms?
A: T/T 50% as deposit, Balance 50% paid before leaving the factory.

Q: What is the shipping port?
A: We ship the goods via Tianjin Port.

Q: What are your main products?
A: Power cable, control cable, communication cable, etc.

Q: Can you produce according to customers' design?
A: Yes, we are a professional manufacturer. OEM and ODM are both welcome.

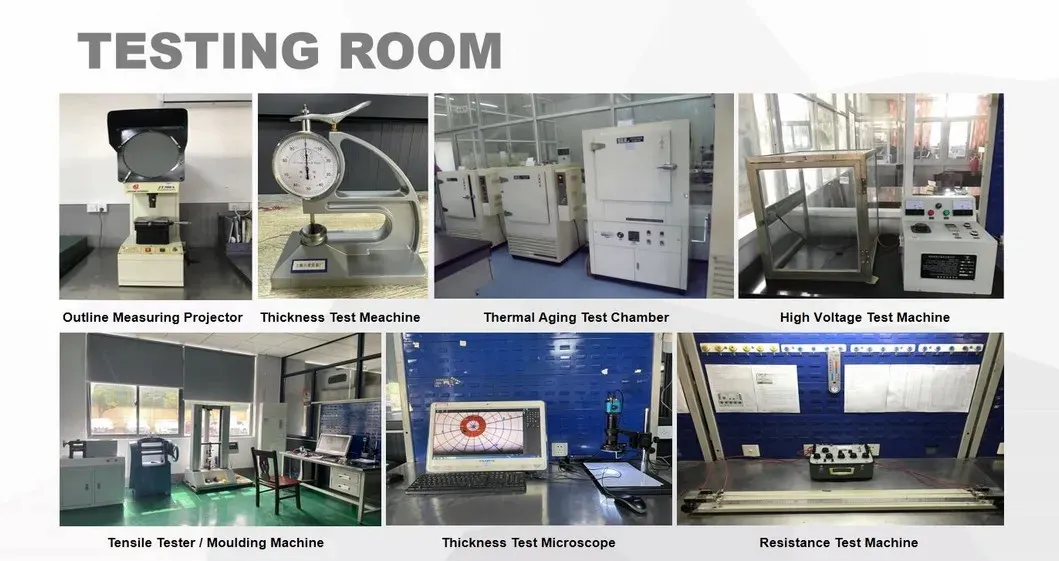

Q: How do you guarantee the quality of your products?
A: Each step is strictly controlled by the QC team to ensure all our products turn out great.
